Name: IRFB4410ZPBF
Brand: Infineon Technologies
SKU: IRFB4410ZPBF
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Infineon Technologies IRFB4410ZPBF

Part No.:: IRFB4410ZPBF

Manufacturer:: Infineon Technologies

Package:: TO-220AB

Datasheet:: IRFB4410ZPBF.pdf

Description:: MOSFET N-CH 100V 97A TO220AB

In Stock:: 3841

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRFB4410ZPBF Specifications

Packaging:
Tube
Series:
HEXFET®
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
100 V
Current-ContinuousDrain(Id)@25°C:
97A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
9mOhm @ 58A, 10V
Vgs(th)(Max)@Id:
4V @ 150µA
GateCharge(Qg)(Max)@Vgs:
120 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
4820 pF @ 50 V
FETFeature:
-
PowerDissipation(Max):
230W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Through Hole

IRFB4410ZPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRFB4410ZPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRFB4410ZPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRFB4410ZPBF information

Views：

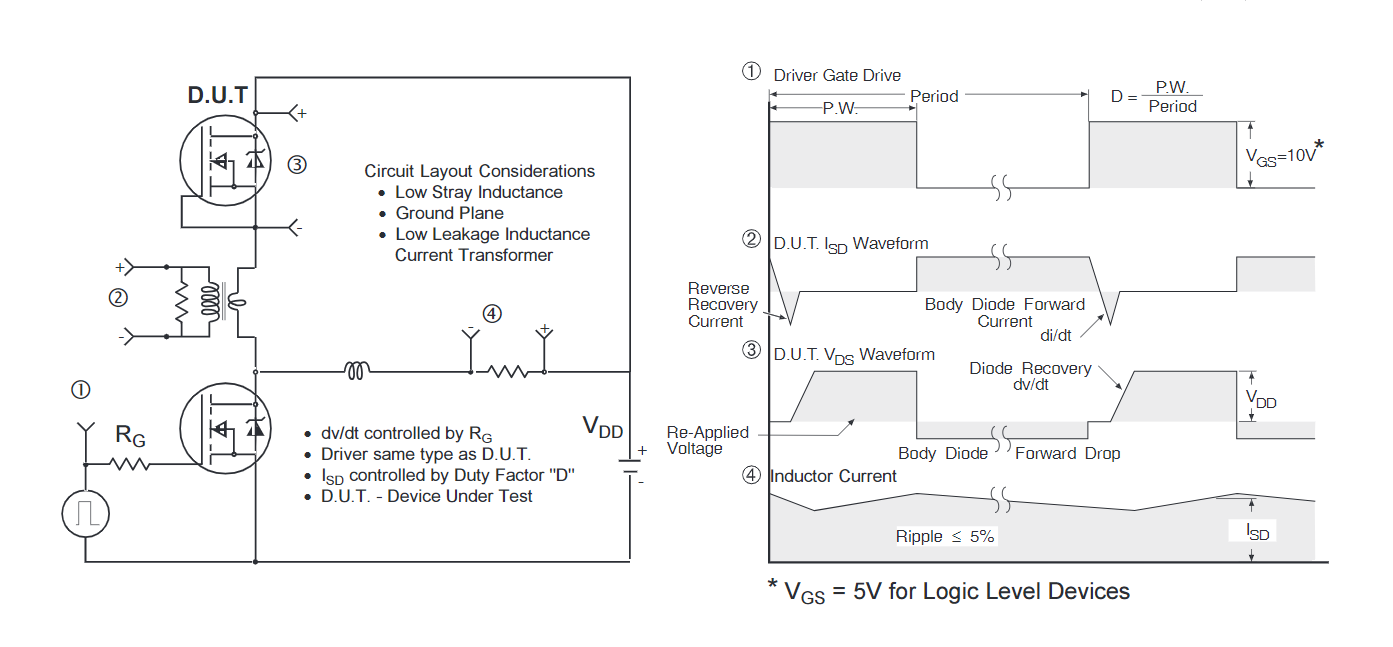

IRFB4410ZPBF Typical application Circuitry

IRFB4410ZPBF

The IRFB4410ZPBF, hailing from International Rectifier's esteemed HEXFET® Power MOSFET series, is an N-channel device revered for its remarkable efficiency and high switching performance. Characterized by its low on-resistance and fast switching attributes, the IRFB4410ZPBF embodies a culmination of advanced processing techniques and innovative designs. For those seeking to embed the IRFB4410ZPBF into their electronic schematics, understanding its pin-level intricacies is pivotal.

1. Gate (G):

- As the controlling conduit of the IRFB4410ZPBF, the Gate receives input signals determining the MOSFET's conductive state. It can be driven directly by microcontrollers or, in scenarios demanding higher currents, via gate driver circuits. - Interposing a gate resistor between the driving source and the Gate can regulate switching speeds and curtail inrush currents.

- A parallel-configured gate-to-source resistor, ensuring the MOSFET remains off during transient states or undefined input conditions, provides an added layer of protection.

2. Drain (D): The Drain serves as the exit pathway for the current flowing through the MOSFET. It typically finds its connection either to the load or directly to the power supply's positive terminal, contingent on the configuration (high-side or low-side switch).

3. Source (S): Representing the IRFB4410ZPBF's current ingress point, the Source usually anchors itself to the circuit's ground. When utilized as a high-side switch, the Source connects to the load's opposing terminal.

4. Supplementary Circuit Integration Measures:

- Transient Voltage Suppression: Given the potential for voltage spikes, especially when the IRFB4410ZPBF manages inductive loads, an accompanying diode (often a Schottky or fast recovery diode) parallel to the MOSFET can mitigate voltage transients.

- Gate Overvoltage Safeguarding: A zener diode, bridging the Gate and Source, can cap the gate voltage, preserving the IRFB4410ZPBF's structural integrity against overvoltages.

- Thermal Regulation: The IRFB4410ZPBF, during periods of intensified activity, may generate heat. Incorporating a heat sink, based on the device's power dissipation and ambient temperature conditions, ensures a cool operational state.

Embarking on a circuit design journey with the IRFB4410ZPBF requires a profound respect for its operating conditions. As such, periodic cross-referencing with the component's datasheet is paramount, ensuring voltage, current, and thermal limits remain uncompromised. The IRFB4410ZPBF's prowess, when harmonized with meticulous design practices, can elevate the efficiency and reliability of myriad electronic applications.
