Infineon Technologies IRF7410TRPBF-1

Part No.:: IRF7410TRPBF-1

Manufacturer:: Infineon Technologies

Package:: 8-SOIC

Datasheet:: IRF7410TRPBF-1.pdf

Description:: MOSFET P-CH 12V 16A 8SO

In Stock:: 3134

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRF7410TRPBF-1 Specifications

Packaging:
Tape & Reel (TR)
Series:
HEXFET®
ProductStatus:
Obsolete
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
12 V
Current-ContinuousDrain(Id)@25°C:
16A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
-
RdsOn(Max)@IdVgs:
7mOhm @ 16A, 4.5V
Vgs(th)(Max)@Id:
900mV @ 250µA
GateCharge(Qg)(Max)@Vgs:
91 nC @ 4.5 V
Vgs(Max):
±8V
InputCapacitance(Ciss)(Max)@Vds:
8676 pF @ 10 V
FETFeature:
-
PowerDissipation(Max):
2.5W (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

IRF7410TRPBF-1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRF7410TRPBF-1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRF7410TRPBF-1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRF7410TRPBF-1 information

Views：

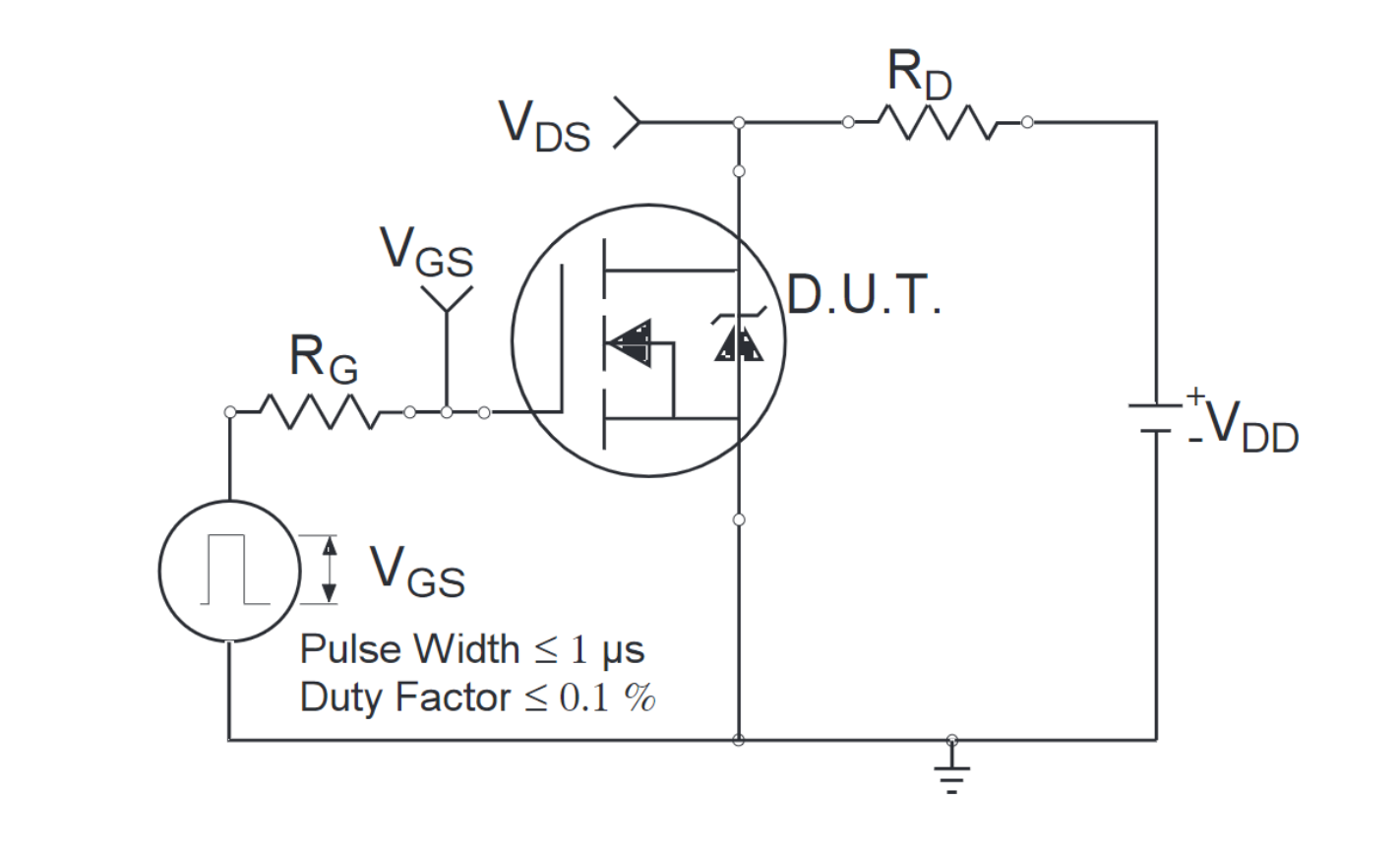

IRF7410TRPBF-1 Typical application Circuitry

IRF7410TRPBF-1

The IRF7410TRPBF-1 emerges as a crucial component within the HEXFET® power MOSFET lineup, courtesy of its nuanced optimization for swift switching and low on-resistance. Manufactured by Infineon (previously International Rectifier), this P-Channel MOSFET operates with an advanced process technology that underscores power efficiency, making it integral for lightweight and streamlined power management applications. Here, we will dissect the connection blueprint for the IRF7410TRPBF-1, ensuring a holistic understanding of its operational dynamics.

1. Gate (G): This terminal acts as the command center for the IRF7410TRPBF-1, regulating its switching activities. The gate-source voltage (Vgs) controls the transistor's on/off state. It's imperative to connect a gate-drive circuit or PWM controller for precise control. Considering the sensitivity of the Gate to voltage spikes, it's prudent to include a gate resistor to dampen potential surges and maintain signal integrity.

2. Drain (D): Acting as the output reference point, the Drain is where the load circuitry integrates. Whether you're driving a motor, powering a light, or operating a resistive load, the connection extends from this terminal. For high-side switch configurations, the Drain connects to the positive side of the power supply, whereas, for a low-side switch, it ties directly to the load.

3. Source (S): The Source pin is foundational for completing the current's circuit path. In standard operations, it links to the system's ground. However, in high-side switching applications, it connects to the negative terminal of the load.

4. Refining Circuit Integration:

- Protection Diodes: Utilizing a flyback diode becomes necessary when inductive loads are in play. This strategy curtails voltage transients and safeguards the IRF7410TRPBF-1 from potential back EMF complications.

- Gate Security Measures: Implementing a zener diode between the Gate and Source can prove instrumental. This structure caps the voltage, shielding the gate oxide from destructive overvoltage conditions.

- Thermal Regulation: Despite the IRF7410TRPBF-1's efficiency, scenarios of high current can induce thermal stress. Employing thermal management, such as heat sinks or regulated airflow, preserves the MOSFET's lifespan and reliability.

- Verification Phase: Post-assembly, initiating a thorough testing protocol is crucial. This diagnostic phase, encompassing stress tests and functional evaluations, ensures the circuit's readiness for its intended application.

To encapsulate, the IRF7410TRPBF-1 is a testament to technological advancement in power management sectors, particularly in spaces dictated by efficiency and spatial economy. Its integration commands a nuanced approach, necessitating a circuit design that respects its operational thresholds and electrostatic sensitivities. Abiding by these guidelines ensures that every feature of the IRF7410TRPBF-1 is fully harnessed and its functionality meticulously optimized within the electronic design narrative.
