Name: IRF630NPBF
Brand: Infineon Technologies
SKU: IRF630NPBF
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Infineon Technologies IRF630NPBF

Part No.:: IRF630NPBF

Manufacturer:: Infineon Technologies

Package:: TO-220AB

Datasheet:: IRF630NPBF.pdf

Description:: MOSFET N-CH 200V 9.3A TO220AB

In Stock:: 12714

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRF630NPBF Specifications

Packaging:
Tube
Series:
HEXFET®
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
200 V
Current-ContinuousDrain(Id)@25°C:
9.3A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
300mOhm @ 5.4A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
35 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
575 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
82W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Through Hole

IRF630NPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRF630NPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRF630NPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRF630NPBF information

Views：

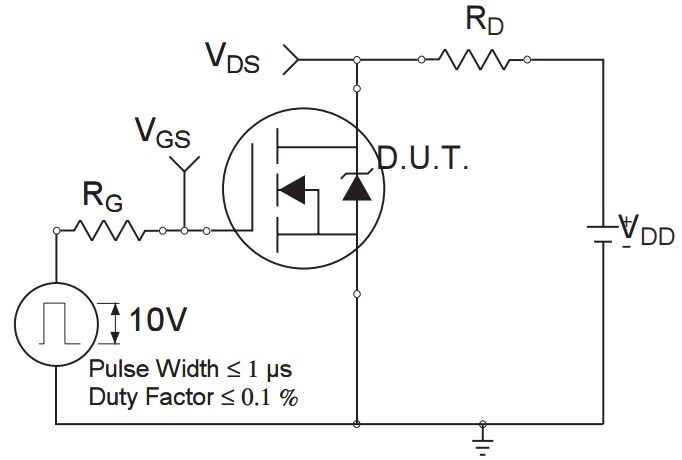

IRF630NPBF Typical application Circuitry

IRF630NPBF

The IRF630NPBF stands out as an N-channel power MOSFET, celebrated for its robust voltage and current management prowess. It finds its place in a myriad of applications, such as in the realms of switching regulators, power amplifiers, and motor control circuits, where its adeptness at switching and amplifying electronic signals is indispensable.

Diving into the Parameters

- Voltage Endurance (Vdss): Peaks at 200V

- Current Handling (Id): Reaches up to 9.3A

- Voltage Threshold (Vgs): Maintains within ±20V

- Dissipation Power (Pd): Caps at 74W

Illustrative Application: Controlling a DC Motor

1. Motor Management Role: Deploy the IRF630NPBF to regulate both the velocity and direction of a DC motor, capitalizing on its capacity to manage high voltage and current levels.

2. Gate Drive Scheme: Establish a gate driver circuit to furnish the requisite gate voltage to the IRF630NPBF, ensuring its operation stays within the safe Vgs bounds.

3. PWM Implementation: Utilize a microcontroller to craft a PWM signal for the gate of the IRF630NPBF, facilitating precise command over the motor's speed.

4. Inductive Load Protection: Position a flyback diode across the motor's terminals to shield the IRF630NPBF from potential voltage surges induced by the motor's inductive nature.

5. Heat Dissipation Strategy: Affix a heatsink to the IRF630NPBF to efficiently disperse heat and maintain a stable performance.

Key Design Considerations

Incorporating the IRF630NPBF into your circuit designs necessitates mindfulness of several critical aspects:

- Thermal Regulation: Implement effective cooling strategies to avert overheating and preserve the MOSFET's functionality.

- Gate Drive Configuration: Engineer a suitable gate drive circuit to ensure efficient switching and minimize losses.

- Circuit Safeguards: Introduce protective measures to shield the MOSFET and the circuit from electrical adversities.

- Circuit Layout: Thoughtfully design the layout to reduce parasitic elements and boost the overall switching efficacy.

By meticulously addressing these considerations, you can harness the IRF630NPBF's capabilities in your circuit designs, achieving optimal performance and reliability
