Infineon Technologies IRF6216TRPBF-1

Part No.:: IRF6216TRPBF-1

Manufacturer:: Infineon Technologies

Package:: SOT-223

Datasheet:: IRF6216TRPBF-1.pdf

Description:: MOSFET P-CH 150V 2.2A SOT223

In Stock:: 3363

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRF6216TRPBF-1 Specifications

Packaging:
Tape & Reel (TR)
Series:
HEXFET®
ProductStatus:
Obsolete
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
150 V
Current-ContinuousDrain(Id)@25°C:
2.2A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
240mOhm @ 1.3A, 10V
Vgs(th)(Max)@Id:
5V @ 250µA
GateCharge(Qg)(Max)@Vgs:
49 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
1280 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
2.5W (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

IRF6216TRPBF-1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRF6216TRPBF-1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRF6216TRPBF-1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRF6216TRPBF-1 information

Views：

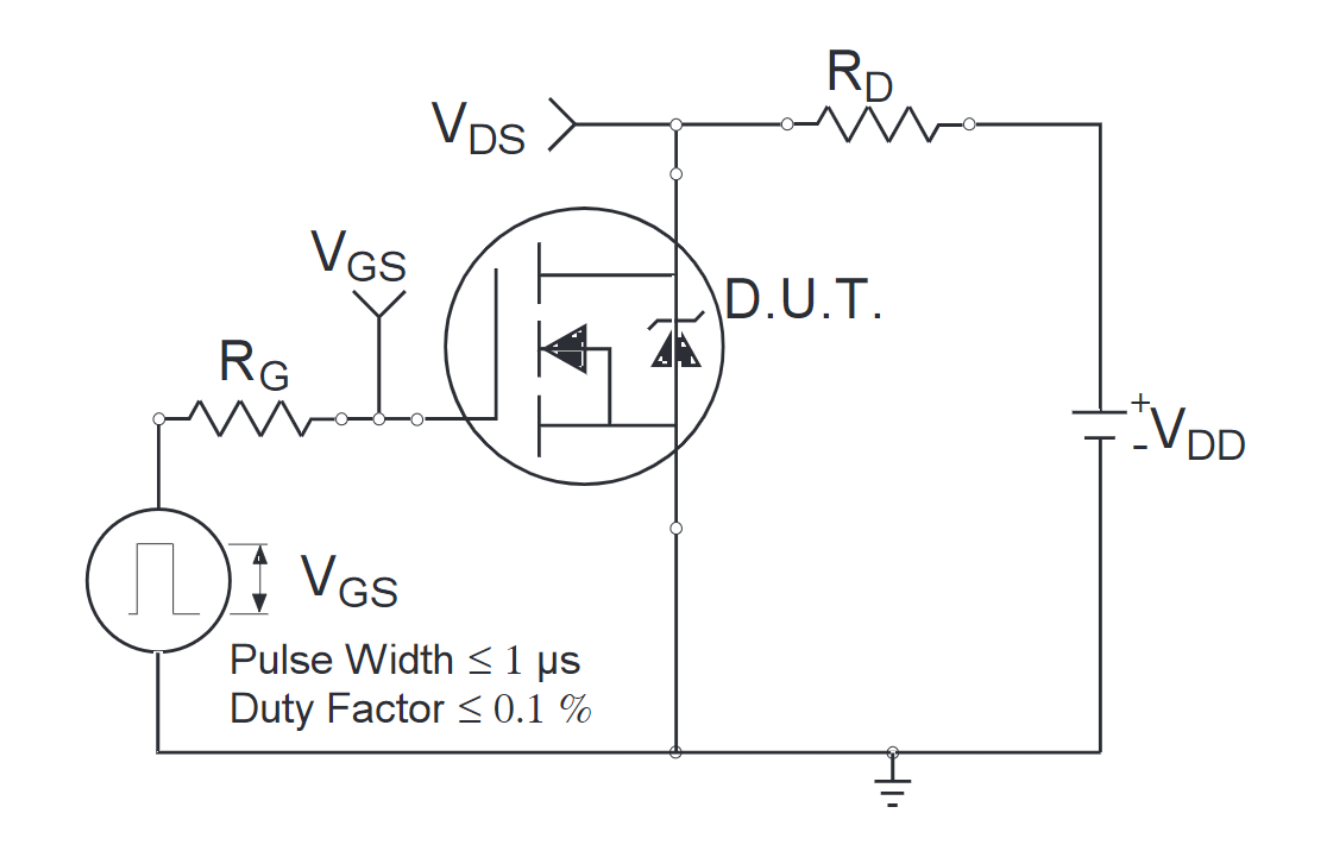

IRF6216TRPBF-1 Typical application Circuitry

IRF6216TRPBF-1

The IRF6216TRPBF-1 is a P-Channel HEXFET® Power MOSFET from International Rectifier's renowned series of advanced power management components. With its specialized design, the IRF6216TRPBF-1 stands out for its efficient energy handling capabilities, low on-resistance, and effective switching characteristics. To harness its features optimally in various applications, a clear comprehension of its pin configurations and accurate circuit integration is pivotal.

1. Gate (G): The Gate terminal is the controlling interface of the IRF6216TRPBF-1. It dictates the ON or OFF state of the MOSFET based on the voltage applied. Generally, for a P-Channel MOSFET like the IRF6216TRPBF-1, a voltage less than the Source (typically negative or towards the ground) will turn it ON, while a voltage equal to or greater than the Source will turn it OFF. Employing a pull-up resistor to the positive voltage rail can ensure the MOSFET remains OFF during undetermined states.

2. Drain (D): This is where the current enters in a P-Channel MOSFET like the IRF6216TRPBF-1. Depending on the application, this pin can be connected to the load's negative side or the system's ground, especially if the MOSFET is utilized as a high-side switch.

3. Source (S): The Source terminal is where the current exits the MOSFET. It typically connects to the positive side of the supply voltage when the IRF6216TRPBF-1 operates as a high-side switch.

4. Emphasizing Protective Strategies:

- Gate Protection: To defend against potential voltage spikes or transients, consider integrating a zener diode across the Gate and Source, ensuring the zener voltage is just below the maximum gate-source threshold for the IRF6216TRPBF-1.

- Flyback Protection: When the MOSFET switches inductive loads, a flyback diode across the load (anode on the Drain and cathode on the positive supply) is a valuable safeguard against inductive voltage spikes.

5. Heat Management Considerations: The IRF6216TRPBF-1, when managing significant currents, will produce heat. Ensuring adequate heat dissipation using heat sinks or thermal pads, in compliance with the IRF6216TRPBF-1's specified thermal limits, is essential.

6. Ensuring Gate Drive Dynamics: For optimal performance and quick switching, ensure that the gate drive circuitry supplies and sinks adequate current to and from the IRF6216TRPBF-1's Gate. This is especially pertinent in high-frequency operations.
