Infineon Technologies IRF540NSTRRPBF

Part No.:: IRF540NSTRRPBF

Manufacturer:: Infineon Technologies

Package:: D2PAK

Datasheet:: IRF540NSTRRPBF.pdf

Description:: MOSFET N-CH 100V 33A D2PAK

In Stock:: 1460

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRF540NSTRRPBF Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
HEXFET®
ProductStatus:
Last Time Buy
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
100 V
Current-ContinuousDrain(Id)@25°C:
33A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
44mOhm @ 16A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
71 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
1960 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
130W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

IRF540NSTRRPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRF540NSTRRPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRF540NSTRRPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRF540NSTRRPBF information

Views：

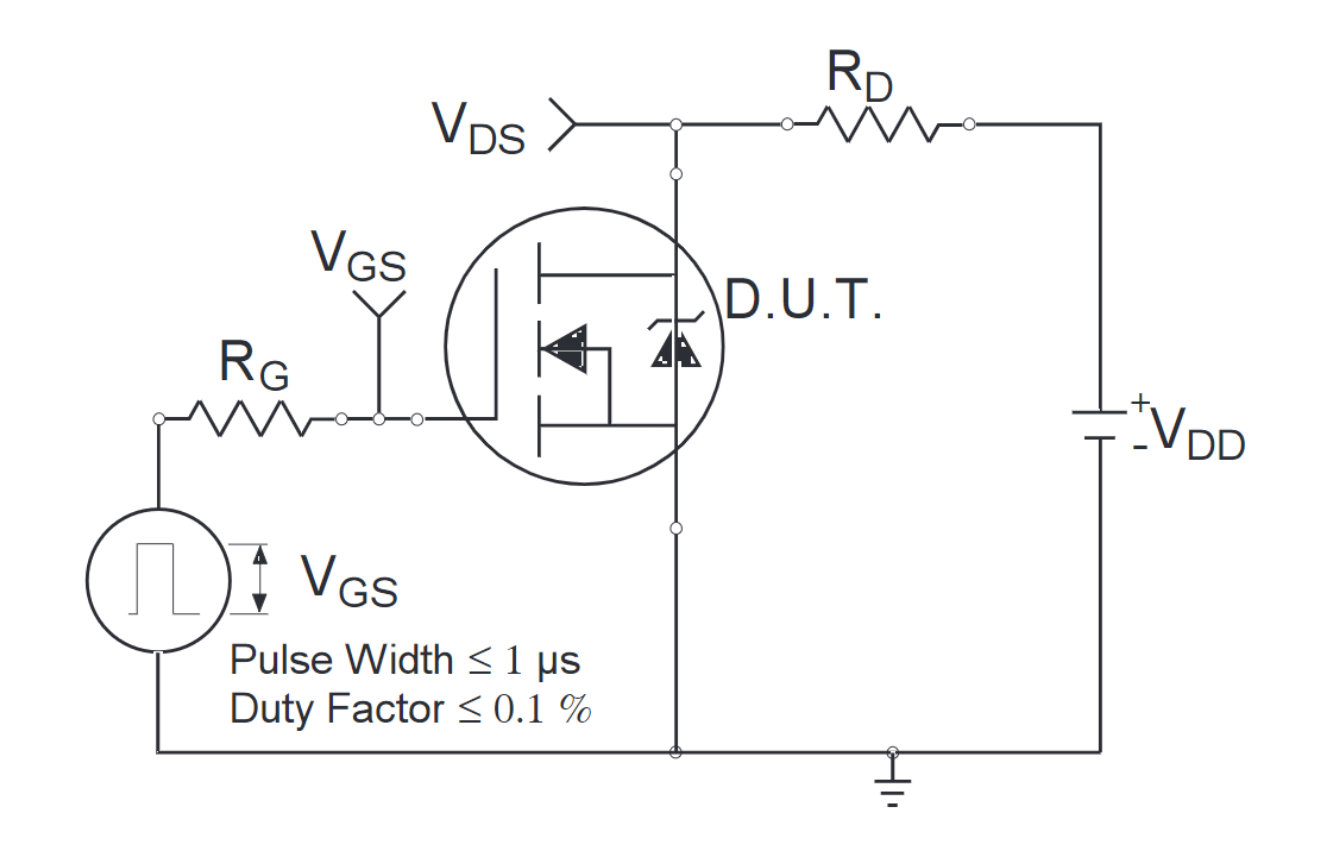

IRF540NSTRRPBF Typical application Circuitry

IRF540NSTRRPBF

The IRF540NSTRRPBF, hailing from International Rectifier's esteemed series of power MOSFETs, exemplifies the amalgamation of fast switching capability, low on-resistance, and reliability. Primarily conceived for swift switching applications, the IRF540NSTRRPBF operates with an enhancement-mode mechanism, making it an ideal choice for myriad voltage regulation, motor control, and inverter tasks. To harness the full potential of the IRF540NSTRRPBF, one must possess a thorough grasp of its pin connections and the nuances of its integration into circuits.

1. Drain (D): As the channel through which current predominantly streams towards the load, the Drain warrants a connection directly tethered to the load's endpoint. The load's opposing end then either establishes a link to the positive voltage source (when dealing with top-side switches) or to the common ground (in the context of bottom-side switches).

2. Gate (G): This command hub of the IRF540NSTRRPBF determines the MOSFET's on-off state. The gate should interact with your control signal, often interposed by a gate resistor to maintain switch stability and modulate the gate charging curve. It's crucial to remember that this pin remains extremely sensitive to static discharges; hence, caution during handling is non-negotiable.

3. Source (S): Predominantly, the Source terminal finds its anchor point at the ground, particularly in standard switching configurations. However, in top-side switch designs, it directly engages with the load.

4. Protective Elements:

- Gate Protection: A gate-source zener diode is recommended to shield the IRF540NSTRRPBF against inadvertent voltage surges, preserving its gate oxide integrity. Simultaneously, a resistor on the gate curtails abrupt current influxes, ensuring the MOSFET's longevity.

- Flyback Diode: When employed in inductive load scenarios, the IRF540NSTRRPBF necessitates a diode arranged in parallel to the load. This counteracts harmful voltage transients resulting from inductive discharges.

5. Thermal Management: Given the IRF540NSTRRPBF's propensity to generate heat under high current scenarios, it's imperative to incorporate suitable heat sinking methods, ensuring the MOSFET remains within its thermal limits.

6. Ensuring Operative Harmony: It's essential to be circumspect regarding the voltage thresholds (Vgs) applied to the Gate to guarantee seamless transition between on-off states. It's equally crucial to ascertain that the Drain-Source voltage (Vds) remains within the specified limits outlined in the IRF540NSTRRPBF datasheet.

In conclusion, the IRF540NSTRRPBF stands as a testament to the prowess of modern power electronics. Nevertheless, to unlock its full potential, one must exercise precision in its integration into electronic assemblies. The datasheet of the IRF540NSTRRPBF remains the primary reference, elucidating every subtle detail and ensuring the device's optimal functionality within its designated operational realm.
