Infineon Technologies IRF540NLPBF

Part No.:: IRF540NLPBF

Manufacturer:: Infineon Technologies

Package:: TO-262

Datasheet:: IRF540NLPBF.pdf

Description:: MOSFET N-CH 100V 33A TO262

In Stock:: 2606

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRF540NLPBF Specifications

Packaging:
Tube
Series:
HEXFET®
ProductStatus:
Last Time Buy
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
100 V
Current-ContinuousDrain(Id)@25°C:
33A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
44mOhm @ 16A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
71 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
1960 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
130W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Through Hole

IRF540NLPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRF540NLPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRF540NLPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRF540NLPBF information

Views：

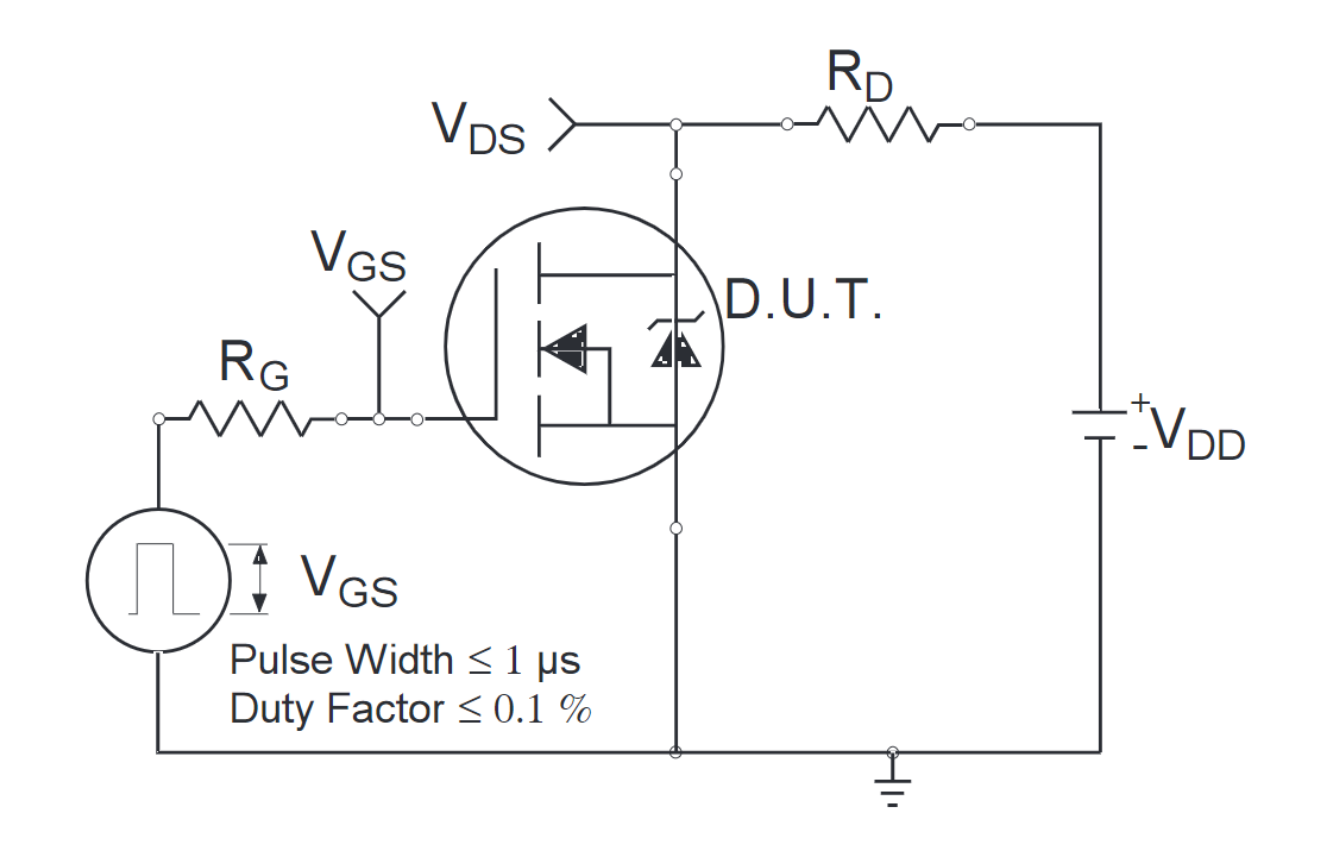

IRF540NLPBF Typical application Circuitry

IRF540NLPBF

The IRF540NLPBF is a prominent member of the International Rectifier's renowned HEXFET power MOSFET family. Known for its powerful efficiency, high switching speed, and commendable voltage handling capacity, the IRF540NLPBF is adept at serving a diverse array of applications, from motor control to power regulation systems. To maximize the potential of this MOSFET, pinpoint accuracy in understanding its pins and proper circuit integration is paramount.

1. Drain (D): Acting as the primary exit route for the current, the Drain terminal must be meticulously connected to one side of the load. The other side of the load then bridges either to the supply's positive end (when orchestrating high-side switching) or the ground (for low-side switching scenarios).

2. Gate (G): The epicenter of command, the Gate terminal of the IRF540NLPBF regulates its active or passive state. This pivotal terminal interfaces with the output from the control circuit, often necessitating an inline resistor for protective and switching dynamic management purposes. By strategically placing a gate resistor, unwanted oscillations can be mitigated, and the surge of gate current during swift switching can be managed.

3. Source (S): Typically anchored to the ground for straightforward switching operations, the Source terminal, when involved in high-side switch designs, engages directly with the load.

4. Protection & Enhancement Mechanisms:

- Diode Integration: When paired with inductive loads, it's vital for the IRF540NLPBF to operate in tandem with a flyback diode. This diode, positioned parallel to the load, safeguards the MOSFET from voltage spikes, which are typical aftermaths of inductive rebounds.

- Gate Protection: For an extra layer of security, consider integrating a zener diode between the gate and source. This configuration wards off potential voltage overloads. Alongside, a current-regulating resistor affixed to the gate terminal can significantly reduce the risk of damaging the IRF540NLPBF due to electrostatic discharge or unintended surges.

5. Heat Management & Dissipation: Given the propensity of the IRF540NLPBF to generate heat when managing significant currents, it's essential to incorporate adequate heat sinking measures. Proper thermal solutions ensure longevity and maintain optimal MOSFET performance.

6. Compliancy with Parameters: To foster seamless operation, always ensure that the applied voltages and currents adhere to the stipulations outlined in the IRF540NLPBF's datasheet. This proactive measure wards off potential hazards like unexpected voltage spikes or excessive current influx.
