Infineon Technologies IRF5210PBF

Part No.:: IRF5210PBF

Manufacturer:: Infineon Technologies

Package:: TO-220AB

Datasheet:: IRF5210PBF.pdf

Description:: MOSFET P-CH 100V 40A TO220AB

In Stock:: 27227

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRF5210PBF Specifications

Packaging:
Tube
Series:
HEXFET®
ProductStatus:
Active
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
100 V
Current-ContinuousDrain(Id)@25°C:
40A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
60mOhm @ 24A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
180 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
2700 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
200W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Through Hole

IRF5210PBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRF5210PBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRF5210PBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRF5210PBF information

Views：

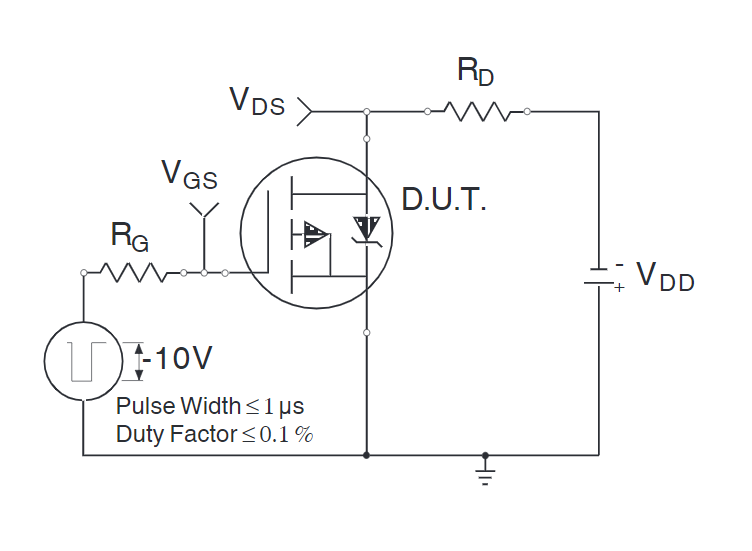

IRF5210PBF Typical application Circuitry

IRF5210PBF

The IRF5210PBF is a prominent P-channel MOSFET from International Rectifier's esteemed Power MOSFET lineup. With its intrinsic fast switching, low on-resistance, and robust thermal properties, the IRF5210PBF is specifically engineered for high-performance switching applications. This discourse delves deep into the specifics of the IRF5210PBF, elucidating the intricate nuances of circuit integration and spotlighting the pivotal nature of each pin.

1. Gate (G): The gate, being the MOSFET's command interface, essentially regulates the IRF5210PBF's conduction state. The voltage applied here determines whether the MOSFET conducts or insulates. For P-channel MOSFETs like the IRF5210PBF, applying a voltage lower than the source voltage (typically negative) turns the device on. To switch it off, the gate voltage should approximate the source voltage.

2. Drain (D): As the chief current conduit, the Drain associates itself with one end of the load. Given that this is a P-channel MOSFET, when turned on, the Drain connects to a lower voltage, typically ground.

3. Source (S): Acting as the exit point for the current, the Source of the IRF5210PBF typically connects to a higher voltage source in comparison to the Drain, given the P-channel configuration.

4. Crucial Implementation Protocols:

- Protection Mechanisms: To shield the IRF5210PBF from transient voltage spikes-often a result of inductive loads-a flyback diode positioned parallel to the load is indispensable. This ensures the MOSFET's longevity and consistent performance.

- Gate Management: The sensitive nature of the gate necessitates certain protective measures. Integrating a resistor directly into the gate pathway can help manage swift voltage transitions, curbing any undue stress on the IRF5210PBF. Simultaneously, a zener diode placed between the gate and source can act as a bulwark against excessive voltage excursions.

5. Thermal Considerations: Given the propensity of the IRF5210PBF to amass heat under substantial load conditions, orchestrating proficient thermal management solutions is non-negotiable. Utilizing heat sinks, matched to the MOSFET's thermal specs, can effectively dissipate heat, safeguarding device health.

6. Always Validate Operational Parameters: It's paramount to ensure that both gate-to-source and drain-to-source voltages never breach the stipulated limits in the IRF5210PBF's datasheet. Such vigilance prevents unforeseen damages and enhances device longevity.
