Infineon Technologies IRF3710PBF

Part No.:: IRF3710PBF

Manufacturer:: Infineon Technologies

Package:: TO-220AB

Datasheet:: IRF3710PBF.pdf

Description:: MOSFET N-CH 100V 57A TO220AB

In Stock:: 1359

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRF3710PBF Specifications

Packaging:
Tube
Series:
HEXFET®
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
100 V
Current-ContinuousDrain(Id)@25°C:
57A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
23mOhm @ 28A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
130 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
3130 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
200W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Through Hole

IRF3710PBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRF3710PBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRF3710PBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRF3710PBF information

Views：

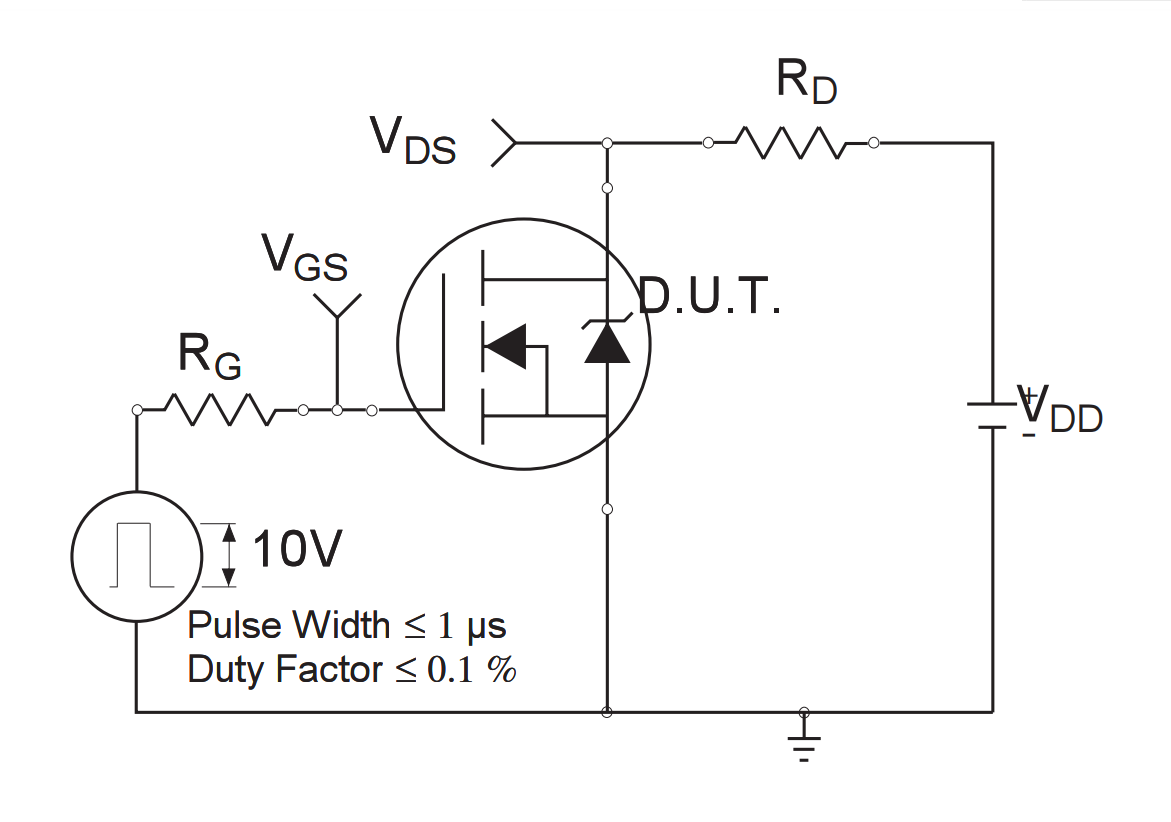

IRF3710PBF Typical application Circuitry

IRF3710PBF

The IRF3710PBF, a member of the extensive MOSFET family from International Rectifier, stands out for its high density, low on-resistance, and high transconductance efficiency. This power MOSFET is renowned for its contribution to creating cost-effective, robust solutions in a myriad of applications, including but not limited to switching power supplies and motor control systems. Delving into the nuances of connecting the IRF3710PBF within a circuit is instrumental in harnessing its full capabilities.

1. Drain (D): The Drain is the primary channel for the current when the MOSFET is switched on. Connect this terminal directly to the positive side of the load, while the other side of the load links to the power supply, fulfilling the current pathway necessary for device operation.

2. Gate (G): The Gate acts as the MOSFET's control mechanism. It is imperative to connect this terminal to the driving circuitry, which often includes a gate resistor to manage the inrush current, thereby protecting the MOSFET from potential damage and controlling the switch's on/off state.

3. Source (S): This pin typically connects to the ground in the circuit, completing the electrical path necessary for standard MOSFET operation. It is also the reference point for the gate drive.

4. Integration of Supportive Components:

- Flyback Diode: Especially relevant when the IRF3710PBF is controlling inductive loads, a diode placed across the load will protect the device from voltage transients and possible reverse currents, enhancing the circuit's reliability.

- Gate Protection: It is prudent to place a zener diode between the gate and source to safeguard against overvoltage conditions. This precaution helps stabilize the IRF3710PBF during voltage fluctuations, preserving its operational integrity.

5. Observing Thermal Management: Given that the IRF3710PBF can conduct significant currents, it might generate substantial heat. Implementing appropriate heat sinking methods or other thermal management solutions is essential for maintaining safe operating temperatures and ensuring device longevity.

6. Compliance with Operational Boundaries: Always refer to the datasheet to understand the maximum ratings for the IRF3710PBF. Respecting these limits is crucial to prevent over-stressing the device, which could lead to its premature failure.

7. Post-Integration Evaluation: After you have integrated the IRF3710PBF into your circuit, conducting a comprehensive functionality check is advisable. Start with lower power tests, gradually escalating to full operational checks, ensuring the device's performance aligns with expectations.
