International Rectifier IRF3205PBF

Part No.:: IRF3205PBF

Manufacturer:: International Rectifier

Package:: TO-220AB

Datasheet:: IRF3205PBF.pdf

Description:: IRF3205 - 12V-300V N-CHANNEL POW

In Stock:: 2766

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRF3205PBF Specifications

Packaging:
Bulk
Series:
HEXFET®
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
55 V
Current-ContinuousDrain(Id)@25°C:
110A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
8mOhm @ 62A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
146 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
3247 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
200W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Through Hole

IRF3205PBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRF3205PBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRF3205PBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRF3205PBF information

Views：

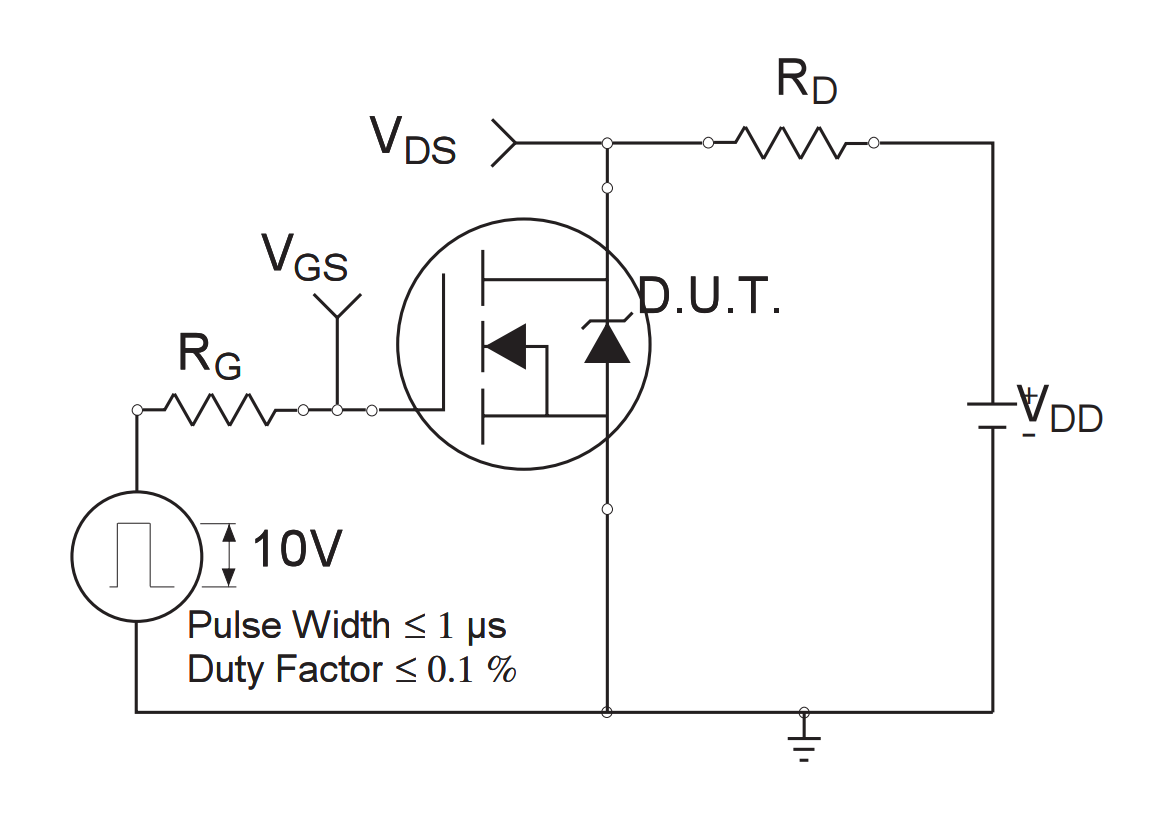

IRF3205PBF Typical application Circuitry

IRF3205PBF

The IRF3205PBF, a member of the HEXFET power MOSFETs from International Rectifier, is celebrated for its efficient energy handling, lower on-state resistance, and high-speed switching characteristics. As a vital component in power electronics, establishing the IRF3205PBF within an electronic environment demands precision and an in-depth grasp of each terminal's role. This exposition is dedicated to delineating the connection blueprint necessary for the IRF3205PBF, ensuring operational efficacy.

1. Drain (D): The Drain terminal, acting as the output, connects directly to the load. Depending on the circuit's nature, the load's other side is connected to the power supply's positive terminal (in a standard configuration) or potentially to the ground (in a sourcing configuration).

2. Gate (G): The Gate terminal is the MOSFET's control input. This terminal interfaces with the signal that commands the switching action, typically coming from a microcontroller, another kind of driver IC, or directly from a signal generator in simpler setups. It is prudent to connect a gate resistor here, limiting the inrush current and providing a slight delay, enhancing the switching behavior.

3. Source (S): The Source terminal is commonly tied to the ground in most circuit configurations. However, in configurations where the MOSFET sources the current for the load, the Source pin is connected directly to the load.

4. Additional Circuitry Elements:

- Flyback Diode: Particularly when the IRF3205PBF is deployed in inductive load applications (such as motors), a flyback diode is critical. The diode is connected across the load to manage voltage spikes due to inductive kickback, protecting the MOSFET.

- Gate Protection: A gate-source resistor can be placed between the gate and source terminals, ensuring that the gate voltage doesn't float and inadvertently turn on the MOSFET. Additionally, a zener diode can be used across the gate and source to protect against over-voltage scenarios.

5. Thermal Management Insights: Given that the IRF3205PBF can handle significant currents, it is predisposed to heat generation. Thus, incorporating a heatsink is beneficial for maintaining the MOSFET's temperature within operational limits, preserving its longevity and reliability.

6. Adherence to Best Practices: While connecting the IRF3205PBF, it's paramount to consult the datasheet and adhere to the recommended electrical characteristics and ratings. This adherence safeguards the device from potential damage due to overcurrent, overvoltage, or thermal runaway situations.

7. Post-Integration Examination: Upon finalizing the circuit, initiating a comprehensive analysis under low-stress conditions is advisable. This precaution helps verify the circuit's robustness, preventing unforeseen failures when fully operational.
