Infineon Technologies IRF3205LPBF

Part No.:: IRF3205LPBF

Manufacturer:: Infineon Technologies

Package:: TO-262

Datasheet:: IRF3205LPBF.pdf

Description:: MOSFET N-CH 55V 110A TO262

In Stock:: 313

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IRF3205LPBF Specifications

Packaging:
Tube
Series:
HEXFET®
ProductStatus:
Last Time Buy
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
55 V
Current-ContinuousDrain(Id)@25°C:
110A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
8mOhm @ 62A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
146 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
3247 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
200W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Through Hole

IRF3205LPBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IRF3205LPBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IRF3205LPBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IRF3205LPBF information

Views：

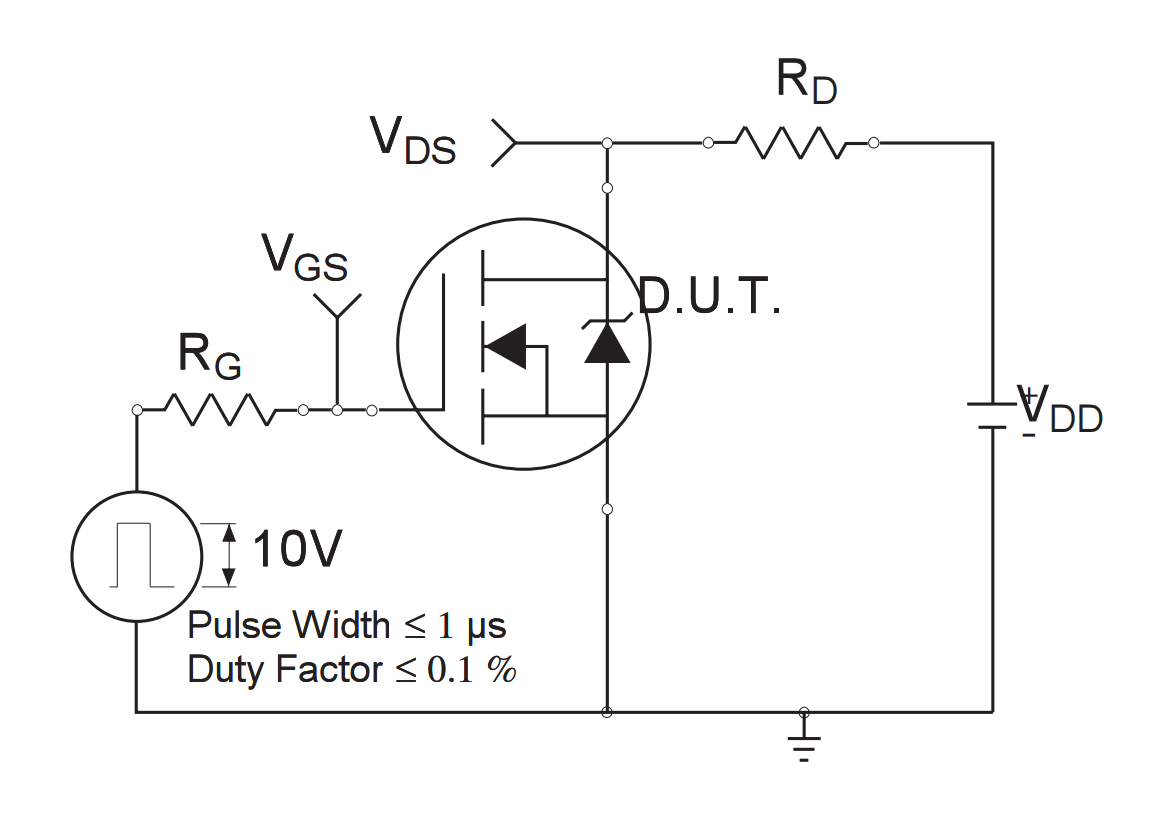

IRF3205LPBF Typical application Circuitry

IRF3205LPBF

The IRF3205LPBF stands as a testament to International Rectifier's dedication to high-quality power management components. It's a member of the HEXFET® power MOSFET family, renowned for its efficient handling of high current flows with minimal on-resistance (RDS(on)). Given the pivotal role of the IRF3205LPBF in a myriad of electronic applications, particularly in switching tasks, it's crucial to grasp its correct interfacing procedures.

1. Gate (G): As the decision-making terminal, the Gate manages the IRF3205LPBF's conduction. It links directly to the output from the control or PWM signal, often facilitated by a gate driver for swift and efficient toggling. It's also a good practice to incorporate a pull-down resistor between the Gate and Source to ensure the MOSFET remains off when not explicitly driven.

2. Drain (D): Typically identified as the "output" in switching configurations, the Drain establishes a connection either directly to the load or, in more complex systems, to another component in the circuit hierarchy. Ensuring a low-resistance path for current flow from Drain to Source is paramount.

3. Source (S): Conventionally, this terminal either attaches to the ground (in the context of low-side switching) or to the other end of the load (in high-side configurations).

4. Bolstering Protection Mechanisms:

- Free-wheeling Diode: Especially pertinent in inductive load contexts (like motors), a diode parallelly oriented to the load shields the IRF3205LPBF from back-EMF-induced voltage spikes, ensuring the MOSFET's longevity.

- Gate Overvoltage: To circumvent potential gate-source voltage excesses, it's judicious to use a zener diode between the Gate and Source. This acts as a safeguard against unexpected voltage surges, preserving the IRF3205LPBF's integrity.

5. Navigating Thermal Landscapes: Given the IRF3205LPBF's potential to handle significant current loads, its thermal dynamics cannot be sidelined. Implementing effective heat sinking or thermal pads, consistent with the MOSFET's thermal resistance metrics, is non-negotiable for sustained performance.

6. Inputs and Drive Considerations: The IRF3205LPBF thrives on a precise gate-source voltage (Vgs). Leveraging a dedicated driver or ensuring the control signal can deliver the requisite voltage amplitude is pivotal.

7. Consistent Alignment with Specifications: Committing to the stringent parameters laid out in the IRF3205LPBF's datasheet is of the essence. Exercising caution to prevent breaches of maximum ratings ensures a seamless and efficient operational experience.
