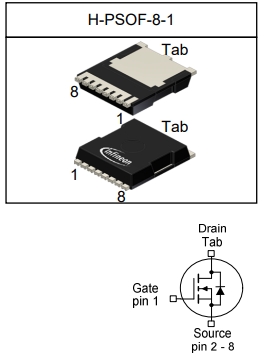

Infineon Technologies IPLU300N04S41R1XTMA1

Part No.:: IPLU300N04S41R1XTMA1

Manufacturer:: Infineon Technologies

Package:: PG-HSOF-8-1

Datasheet:: IPLU300N04S41R1XTMA1.pdf

Description:: MOSFET N-CH 40V 300A 8HSOF

In Stock:: 3297

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

IPLU300N04S41R1XTMA1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101, OptiMOS™
ProductStatus:
Not For New Designs
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
40 V
Current-ContinuousDrain(Id)@25°C:
300A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
1.15mOhm @ 100A, 10V
Vgs(th)(Max)@Id:
4V @ 125µA
GateCharge(Qg)(Max)@Vgs:
151 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
12090 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
300W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

IPLU300N04S41R1XTMA1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including IPLU300N04S41R1XTMA1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for IPLU300N04S41R1XTMA1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

IPLU300N04S41R1XTMA1 information

Views：

IPLU300N04S41R1XTMA1 Typical application Circuitry

IPLU300N04S41R1XTMA1

The IPLU300N04S41R1XTMA1 is a sophisticated power MOSFET developed by Infineon Technologies, designed for high-efficiency power conversion in a wide range of applications. This chip is part of the OptiMOS™ 5 40V series, known for its low on-resistance (R_DS(on)) and fast switching capabilities, making it ideal for applications requiring efficient power management.

Diverse Applications: The IPLU300N04S41R1XTMA1 is commonly utilized in DC-DC converters, motor control circuits, and power management systems for automotive and industrial applications. Its excellent thermal performance and efficiency make it suitable for compact designs where space and power density are critical.

Key Attributes: The distinctive features of the IPLU300N04S41R1XTMA1 include:

- Drain-source voltage (V_DS) of 40V, suitable for low to medium voltage applications.

- Continuous drain current (I_D) of 300A, capable of handling high current loads.

- On-resistance (R_DS(on)) of only 1.1mΩ, minimizing power losses during operation.

- Low gate charge (Q_g) and fast switching speed, enhancing overall efficiency.

Circuit Design for a Synchronous Buck Converter:

1. Input Capacitor Placement: Use a capacitor (C_in) between the input voltage source (V_in) and ground, selecting a 47μF capacitor rated for at least 50V to filter input voltage ripples for a 12V input.

2. High-Side Switch Integration: Connect the drain of the IPLU300N04S41R1XTMA1 to V_in as the high-side switch. The source is connected to the switching node and the inductor (L).

3. Low-Side Switch Configuration: Employ another IPLU300N04S41R1XTMA1 as the low-side switch, connecting its drain to the switching node and its source to ground.

4. Inductor and Output Capacitor Connection: Position an inductor (L) between the switching node and the output capacitor (C_out). A 10μH inductor is recommended for a 20A output current. Connect a 100μF capacitor rated for at least 25V between the output voltage (V_out) and ground to ensure output stability.

5. Gate Drive Circuitry Implementation: Utilize separate gate drivers for the high-side and low-side MOSFETs. Include resistors (R_g) in series with the gates to modulate the switching speed, with a typical value of 5Ω.

6. Feedback Control Mechanism: Establish a feedback loop using a voltage divider and a PWM controller to maintain a consistent output voltage. Adjust the resistor values in the voltage divider to set the desired output voltage.

Considerations for Circuit Design:

- Thermal Management: Prioritize cooling solutions for the MOSFETs to prevent overheating and ensure optimal performance.

- Dead Time Adjustment: Properly configure the dead time between the high-side and low-side switches to prevent shoot-through and enhance efficiency.

- Gate Drive Voltage Optimization: Ensure that the gate drive voltage is within the specified range to maximize the switching performance of the MOSFETs.

- Parasitic Inductance Minimization: Reduce parasitic inductance in the layout to decrease voltage spikes and improve switching performance.

By meticulously selecting components and adhering to the design guidelines, the IPLU300N04S41R1XTMA1 can be effectively employed in a synchronous buck converter circuit for efficient and reliable power conversion in various applications.
