Name: FQPF47P06
Brand: ON Semiconductor
SKU: FQPF47P06
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

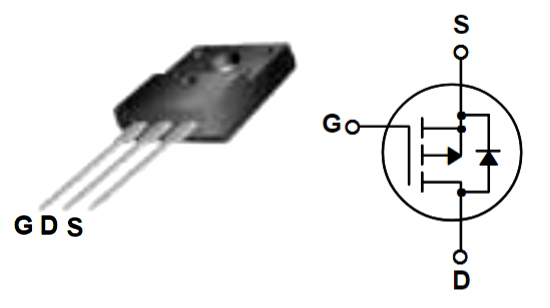

ON Semiconductor FQPF47P06

Part No.:: FQPF47P06

Manufacturer:: ON Semiconductor

Package:: TO-220F-3

Datasheet:: FQPF47P06.pdf

Description:: MOSFET P-CH 60V 30A TO220F

In Stock:: 3670

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FQPF47P06 Specifications

Packaging:
Bulk,Tube
Series:
QFET®
ProductStatus:
Active
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
30A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
26mOhm @ 15A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
110 nC @ 10 V
Vgs(Max):
±25V
InputCapacitance(Ciss)(Max)@Vds:
3600 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
62W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Through Hole

FQPF47P06 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including FQPF47P06 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for FQPF47P06 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

FQPF47P06 information

Views：

FQPF47P06 Typical application Circuitry

FQPF47P06

FQPF47P06 is a P-Channel MOSFET designed for high-speed switching applications. It is often utilized in power management tasks due to its efficiency in handling significant power levels and its ability to switch quickly. This MOSFET can be found in various applications, including power supplies, motor controls, and lighting systems, where a high-performance P-Channel MOSFET is required.

Application Scenarios for FQPF47P06

1. DC-DC Converters: In portable devices where efficient power conversion is crucial to maximize battery life.

2. Motor Control Circuits: Used in industrial and automotive applications to regulate the direction and speed of DC motors.

3. LED Lighting Systems: In the driving circuitry of high-power LED arrays for brightness control.

Parameter Features of FQPF47P06

- Voltage Rating: The FQPF47P06 is rated for a drain-source voltage (Vds) of -60V, making it suitable for medium to high voltage applications.

- Current Handling: Capable of conducting a continuous drain current (Id) of up to -47A, allowing it to handle significant power levels.

- Low RDS(on): Offers low on-state resistance, enhancing its efficiency in conducting current.

Detailed Circuit Connection Using FQPF47P06

Application Scenario: Speed Control in a DC Motor Circuit

1. Motor Connection: Connect the Drain (D) pin of the FQPF47P06 directly to one terminal of the DC motor. The motor's other terminal needs to be linked to the power supply's negative terminal.

2. PWM Input: Apply a PWM (Pulse Width Modulation) signal to the Gate (G) pin of the FQPF47P06. This signal will control the on-off periods of the MOSFET, thereby regulating the motor speed.

3. Source Pin Connection: Connect the Source (S) pin of the FQPF47P06 to the ground (or the negative terminal of the power supply), establishing a common reference point for the circuit.

4. Flyback Diode: Place a flyback diode across the motor terminals, with the cathode connected to the Drain pin of the FQPF47P06 and the anode to the ground. This diode protects the FQPF47P06 from voltage spikes generated by the inductive load of the motor.

Circuit Design Considerations

1. Heat Dissipation: Ensure proper thermal management for the FQPF47P06, as high current flow through the device can generate significant heat. Use heat sinks if necessary.

2. Gate Drive Circuitry: Design the Gate Drive Circuitry to Supply Adequate Voltage and Current to Completely Turn on the FQPF47P06. This ensures low RDS(on) and efficient operation.

3. Protection Features: Incorporate protection mechanisms such as overcurrent protection and thermal shutdown to safeguard the FQPF47P06 and the motor from potential damage.

4. PWM Frequency: Choose an appropriate PWM frequency that optimizes motor performance and efficiency while minimizing audible noise and electromagnetic interference (EMI).

By considering these design aspects, the FQPF47P06 can be effectively utilized in motor control applications, providing efficient and reliable operation.
