Name: FQD3P50TM-F085
Brand: ON Semiconductor
SKU: FQD3P50TM-F085
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ON Semiconductor FQD3P50TM-F085

Part No.:: FQD3P50TM-F085

Manufacturer:: ON Semiconductor

Package:: TO-252AA

Datasheet:: FQD3P50TM-F085.pdf

Description:: MOSFET P-CH 500V 2.1A DPAK

In Stock:: 2838

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FQD3P50TM-F085 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101, QFET®
ProductStatus:
Active
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
500 V
Current-ContinuousDrain(Id)@25°C:
2.1A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
4.9Ohm @ 1.05A, 10V
Vgs(th)(Max)@Id:
5V @ 250µA
GateCharge(Qg)(Max)@Vgs:
23 nC @ 10 V
Vgs(Max):
±30V
InputCapacitance(Ciss)(Max)@Vds:
660 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
2.5W (Ta), 50W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

FQD3P50TM-F085 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including FQD3P50TM-F085 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for FQD3P50TM-F085 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

FQD3P50TM-F085 information

Views：

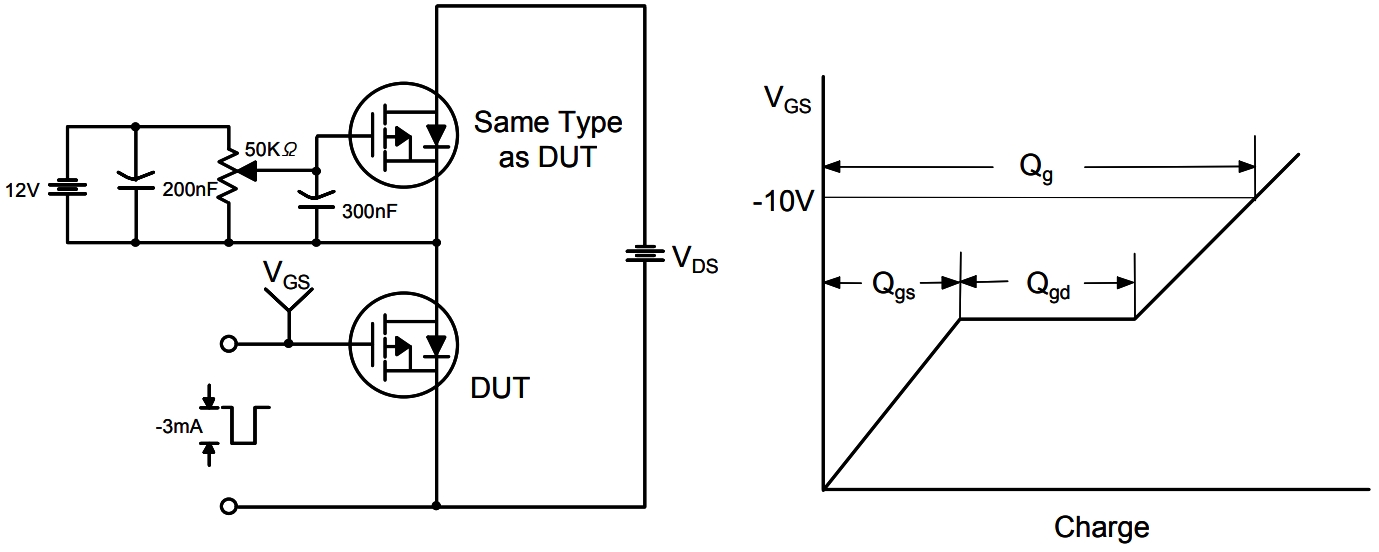

FQD3P50TM-F085 Typical application Circuitry

FQD3P50TM-F085

The FQD3P50TM-F085 is a P-channel MOSFET known for its high voltage switching capabilities, commonly used in power management circuits such as power supplies, motor control, and lighting systems.

Functionality of FQD3P50TM-F085:

The FQD3P50TM-F085 acts as a switch, controlling the flow of electrical current in a circuit. By applying a voltage to its gate, it enables current to flow from its source to drain terminals, facilitating the control of high voltage loads.

Applications of FQD3P50TM-F085:

- Power Supplies: Ideal for AC-DC and DC-DC converters.

- Motor Control: Suitable for controlling the speed and direction of motors.

- Lighting Systems: Used in LED drivers and other lighting control circuits.

- Battery Management: Applicable in charging and discharging circuits for battery packs.

Key Parameters of FQD3P50TM-F085:

- Drain-Source Voltage (V_DS): -500V

- Continuous Drain Current (I_D): -2.7A

- Gate-Source Voltage (V_GS): ±30V

- Total Power Dissipation (P_D): 30W

- On-Resistance (R_DS(on)): 1.7Ω at V_GS = -10V

Circuit Design: Power Supply Application:

Let's explore a circuit design using the FQD3P50TM-F085 in a power supply application.

1: Input Voltage Regulation:

- Pin 1 (Source): Connect to the positive terminal of the input voltage source.

- Pin 3 (Drain): Attach to the input of the voltage regulator circuit.

2: Switching Control:

- Pin 2 (Gate): Interface with a PWM controller to modulate the switching frequency and duty cycle, controlling the output voltage.

3: Output Filtering:

- Pin 3 (Drain): Connect to an LC filter to smooth out the output voltage, ensuring a steady DC output.

4: Feedback Loop:

- Output Voltage Sensing: Use a feedback circuit to monitor the output voltage and adjust the PWM signal accordingly, maintaining a constant output voltage.

Design Considerations:

- Thermal Management: Implement proper heat sinking for the FQD3P50TM-F085 to manage power dissipation and prevent overheating.

- Gate Drive Voltage: To fully switch on the FQD3P50TM-F085 without going over its maximum V_GS rating, make sure the gate drive voltage is within the designated range.

- Features of Protection: To improve the power supply's dependability, include provisions for overcurrent, overvoltage, and thermal shutdown.

- Efficiency: Optimize the switching frequency and duty cycle to achieve high efficiency in the power conversion process.

In summary, the FQD3P50TM-F085 is a versatile P-channel MOSFET suitable for high voltage switching applications, particularly in power supply designs. By considering factors such as thermal management, gate drive voltage, and protection features, a reliable and efficient power supply circuit can be designed using the FQD3P50TM-F085.
