onsemi FDV301N-F169

Part No.:: FDV301N-F169

Manufacturer:: onsemi

Package:: SOT-23-3

Datasheet:: FDV301N-F169.pdf

Description:: MOSFET N-CH 25V 220MA SOT23

In Stock:: 2782

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FDV301N-F169 Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
25 V
Current-ContinuousDrain(Id)@25°C:
220mA (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
2.7V, 4.5V
RdsOn(Max)@IdVgs:
4Ohm @ 400mA, 4.5V
Vgs(th)(Max)@Id:
1.06V @ 250µA
GateCharge(Qg)(Max)@Vgs:
0.7 nC @ 4.5 V
Vgs(Max):
±8V
InputCapacitance(Ciss)(Max)@Vds:
9.5 pF @ 10 V
FETFeature:
-
PowerDissipation(Max):
350mW (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

FDV301N-F169 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including FDV301N-F169 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for FDV301N-F169 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

FDV301N-F169 information

Views：

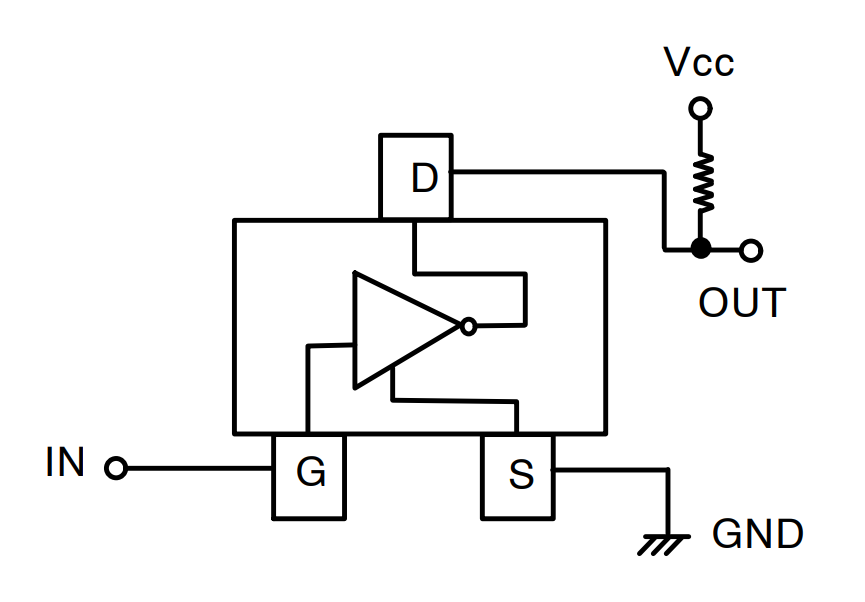

FDV301N-F169 Typical application Circuitry

FDV301N-F169

The FDV301N-F169 is a member of the MOSFET transistor family, particularly the N-Channel variety, from Fairchild Semiconductor (now a part of ON Semiconductor). This component, due to its small footprint and efficient design, is frequently employed in low-voltage switching applications. Given its capability and specificities, it's essential to understand its pin configurations and appropriate connection methodologies for a successful deployment.

1. Drain (D): Typically marked as the central pin of the FDV301N-F169's SOT-23 package, this is where the current flows out, analogous to the collector in a bipolar transistor. When designing circuits, ensure that this pin is correctly connected to the required load or subsequent circuitry.

2. Source (S): This is the MOSFET's reference point and commonly serves as the ground connection for the FDV301N-F169. Proper grounding is imperative to ensure the device's stable operation.

3. Gate (G): The gate terminal of the FDV301N-F169 is where you apply the control voltage. It establishes whether the transistor is conducting or not by determining whether it is ON or OFF. Remember that unlike bipolar transistors, MOSFETs like the FDV301N-F169 require a voltage, not current, at the gate to activate. Hence, a proper voltage level, as per the datasheet, should be maintained for consistent operations.

For optimal results, it's always advisable to incorporate a pull-down resistor with the gate. This ensures that the FDV301N-F169 remains off when there's no driving signal, avoiding potential mishaps due to floating gates.

The SOT-23 package, housing the FDV301N-F169, is compact, which makes it an excellent choice for space-conscious designs. However, one must be cautious during soldering due to its diminutive size.

To sum it all up, when utilizing the FDV301N-F169 in your designs, having a thorough comprehension of its pins and respective functions is paramount. Consistently referring to the component's datasheet, combined with rigorous testing, will guarantee that you harness the full potential of this efficient N-Channel MOSFET.
