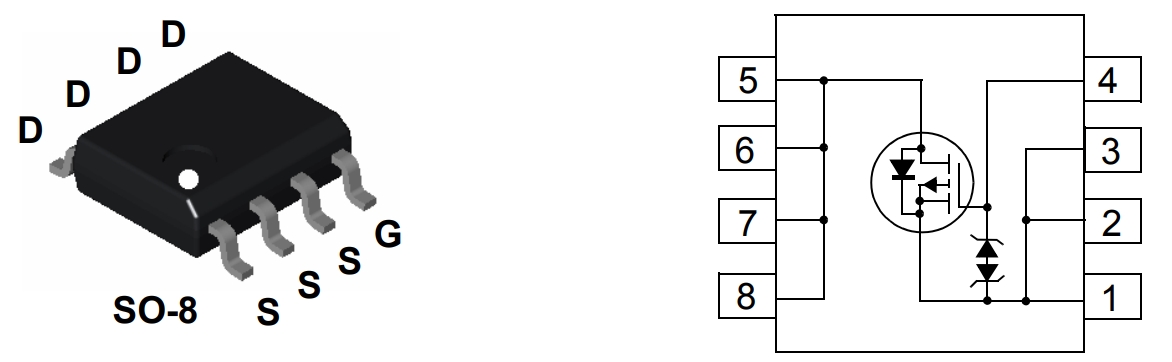

ON Semiconductor FDS6679AZ

Part No.:: FDS6679AZ

Manufacturer:: ON Semiconductor

Package:: 8-SOIC

Datasheet:: FDS6679AZ.pdf

Description:: MOSFET P-CH 30V 13A 8SOIC

In Stock:: 11680

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FDS6679AZ Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
PowerTrench®
ProductStatus:
Active
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
30 V
Current-ContinuousDrain(Id)@25°C:
13A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
9.3mOhm @ 13A, 10V
Vgs(th)(Max)@Id:
3V @ 250µA
GateCharge(Qg)(Max)@Vgs:
96 nC @ 10 V
Vgs(Max):
±25V
InputCapacitance(Ciss)(Max)@Vds:
3845 pF @ 15 V
FETFeature:
-
PowerDissipation(Max):
2.5W (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount
