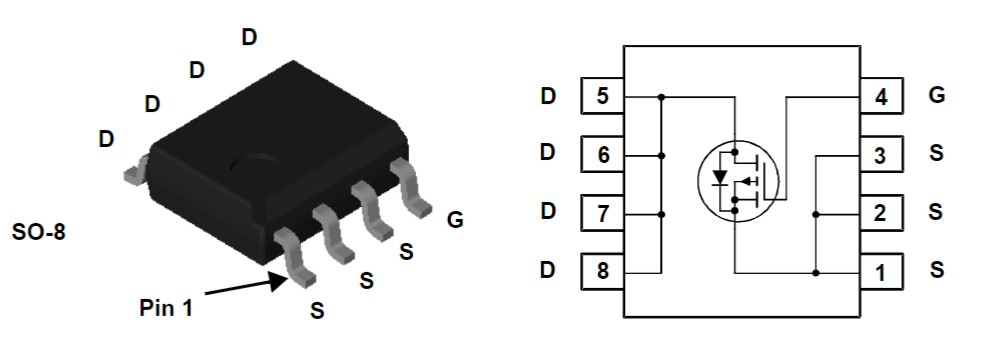

ON Semiconductor FDS4141SN00136P

Part No.:: FDS4141SN00136P

Manufacturer:: ON Semiconductor

Package:: 8-SOIC

Datasheet:

Description:: MOSFET P-CH 40V 10.8A 8SOIC

In Stock:: 2176

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FDS4141SN00136P Specifications

Packaging:
Tape & Reel (TR)
Series:
PowerTrench®
ProductStatus:
Active
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
40 V
Current-ContinuousDrain(Id)@25°C:
10.8A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
13mOhm @ 10.5A, 10V
Vgs(th)(Max)@Id:
3V @ 250µA
GateCharge(Qg)(Max)@Vgs:
49 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
2670 pF @ 20 V
FETFeature:
-
PowerDissipation(Max):
2.5W (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

FDS4141SN00136P this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including FDS4141SN00136P price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for FDS4141SN00136P to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

FDS4141SN00136P information

Views：

FDS4141SN00136P Typical application Circuitry

FDS4141SN00136P

FDS4141SN00136P is a MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) commonly utilized in various electronic applications. It is appropriate for power management and switching circuits due to its low on-resistance and high-speed switching characteristics. This component is often employed in power supplies, motor control, and LED lighting systems due to its efficiency and reliability.

Parameters and Characteristics of FDS4141SN00136P:

- Low On-Resistance: Enhances power efficiency and reduces heat dissipation.

- High-Speed Switching: Ideal for PWM (Pulse Width Modulation) applications, this feature enables quick switching transitions. - Low Gate Threshold Voltage: Enables easy interfacing with low-voltage control signals.

- High Drain-Source Voltage Rating: Appropriate for a variety of voltage uses.

Example Circuit: Motor Control Application

In designing a motor control circuit using the FDS4141SN00136P, several considerations must be taken into account to ensure optimal performance and safety.

Power Stage Design of FDS4141SN00136P:

1. Power Supply: Begin by providing a stable power source, such as a DC voltage supply, to the motor driver circuit. Ensure that the voltage rating complies with the maximum drain-source voltage (V_DS) specified for the MOSFET.

2. Motor Connection: Connect one terminal of the motor to the drain (D) pin of the MOSFET and the other terminal to the positive terminal of the power supply. Ground the source (S) pin of the MOSFET.

3. Gate Driver: Utilize a gate driver IC to properly drive the gate (G) pin of the MOSFET. This IC ensures that the gate is charged and discharged efficiently, enabling fast switching speeds. Take into account the gate threshold voltage (V_GS(th)) of the MOSFET when designing the gate driver circuit to ensure reliable turn-on and turn-off transitions.

4. Protection Circuitry: Implement overcurrent protection using current-sensing resistors and a comparator circuit to prevent damage to the MOSFET and the motor under high-load conditions. Additionally, incorporate diodes across the motor terminals to suppress voltage spikes generated during switching transitions.

Considerations in Circuit Design:

- Heat Dissipation: Calculate power dissipation in the MOSFET to determine if a heat sink is necessary for thermal management.

- Electromagnetic Interference (EMI): Employ proper filtering techniques to minimize EMI generated by the motor and switching circuitry, ensuring compliance with electromagnetic compatibility (EMC) standards.

- Voltage Spike Protection: Include snubber circuits or freewheeling diodes to mitigate voltage spikes and ensure smooth operation of the motor and MOSFET.

- Gate Drive Voltage: Guarantee that the gate driver circuit provides sufficient voltage swing to fully turn on and off the MOSFET, considering its gate threshold voltage and capacitance characteristics.

By addressing these considerations, a robust motor control circuit utilizing the FDS4141SN00136P MOSFET can be designed, providing efficient and reliable operation for various motor control applications.
