ON Semiconductor FDN5630

Part No.:: FDN5630

Manufacturer:: ON Semiconductor

Package:: SOT-23-3

Datasheet:: FDN5630.pdf

Description:: MOSFET N-CH 60V 1.7A SUPERSOT3

In Stock:: 3094

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FDN5630 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
PowerTrench®
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
1.7A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
6V, 10V
RdsOn(Max)@IdVgs:
100mOhm @ 1.7A, 10V
Vgs(th)(Max)@Id:
3V @ 250µA
GateCharge(Qg)(Max)@Vgs:
10 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
400 pF @ 15 V
FETFeature:
-
PowerDissipation(Max):
500mW (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

FDN5630 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including FDN5630 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for FDN5630 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

FDN5630 information

Views：

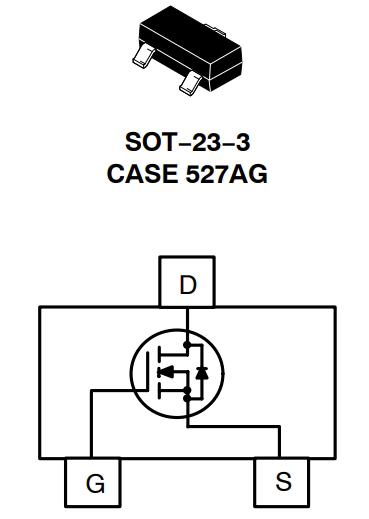

FDN5630 Typical application Circuitry

FDN5630

The FDN5630 is a compact N-channel MOSFET developed by ON Semiconductor, tailored for power management tasks where low on-resistance and high current capabilities are essential. It's particularly suitable for switching applications in compact devices, thanks to its small form factor and efficient performance.

FDN5630 Specifications:

1. Voltage Tolerance: Can handle up to 60V between its drain and source terminals, making it suitable for a variety of applications.

2. Current Capacity: Capable of conducting up to 3A continuously, which is impressive for its size.

3. Resistance: Exhibits a low on-resistance of just 0.07Ω at a gate-source voltage of 10V, ensuring minimal power loss during operation.

4. Gate-Source Voltage: Can withstand ±20V, providing flexibility in control voltage levels.

Application in a Battery-Powered Device:

The FDN5630 is ideal for use in battery-powered devices where efficient power management is critical. One common application is in the power control circuitry of portable electronics.

Circuit Connection Strategy:

1. Battery Connection: Connect the positive terminal of the battery to the drain terminal (D) of the FDN5630.

2. Load Integration: Attach the load (e.g., a motor or LED) to the source terminal (S) of the FDN5630, with the other end of the load connected to the ground.

3. Control Mechanism: Interface the gate terminal (G) with a microcontroller or a switch to control the power flow to the load.

4. Gate Protection: Add a resistor between the control source and the gate to limit the current into the gate, protecting it from damage.

Design Points to Remember:

- Regulation of Gate Voltage: To keep the MOSFET from getting damaged, make sure the voltage delivered to the gate is within the allowed range.

- Thermal Management: Even though the FDN5630 is designed for low-power applications, it's crucial to provide adequate cooling if the device operates near its maximum current rating.

- Circuit Protection: Incorporate protective elements such as fuses or current-limiting resistors to safeguard the circuit from potential overcurrent conditions.

- Signal Integrity: In applications involving high-speed switching, consider the layout carefully to maintain signal integrity and minimize noise.

In battery-powered devices, the FDN5630 is a key component for managing power distribution efficiently, ensuring that the device operates reliably while conserving battery life. When designing a circuit with this MOSFET, attention should be given to gate voltage regulation, thermal management, circuit protection, and maintaining signal integrity to ensure optimal performance and longevity.
