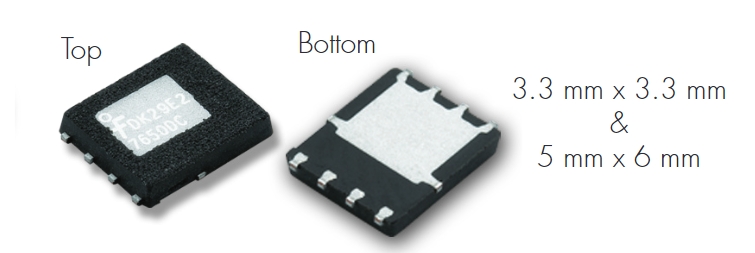

ON Semiconductor FDMS86200DC

Part No.:: FDMS86200DC

Manufacturer:: ON Semiconductor

Package:: 8-PQFN (5x6)

Datasheet:: FDMS86200DC.pdf

Description:: MOSFET N-CH 150V 9.3A DLCOOL56

In Stock:: 2800

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FDMS86200DC Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Dual Cool™, PowerTrench®
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
150 V
Current-ContinuousDrain(Id)@25°C:
9.3A (Ta), 28A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
6V, 10V
RdsOn(Max)@IdVgs:
17mOhm @ 9.3A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
42 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
2955 pF @ 75 V
FETFeature:
-
PowerDissipation(Max):
3.2W (Ta), 125W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount
