What is the Additional Feature ?

Name: FDD120AN15A0-F085
Brand: ON Semiconductor
SKU: FDD120AN15A0-F085
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

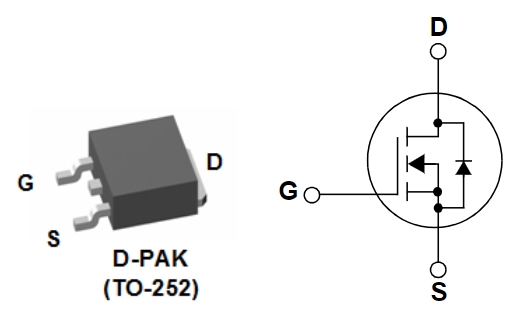

ON Semiconductor FDD120AN15A0-F085

Part No.:: FDD120AN15A0-F085

Manufacturer:: ON Semiconductor

Package:: TO-252AA

Datasheet:: FDD120AN15A0-F085.pdf

Description:: MOSFET N-CH 150V 14A DPAK

In Stock:: 2497

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FDD120AN15A0-F085 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101, PowerTrench®
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
150 V
Current-ContinuousDrain(Id)@25°C:
14A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
120mOhm @ 4A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
14 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
743 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
65W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

FDD120AN15A0-F085 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including FDD120AN15A0-F085 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for FDD120AN15A0-F085 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

FDD120AN15A0-F085 information

Views：

FDD120AN15A0-F085 Typical application Circuitry

FDD120AN15A0-F085

The FDD120AN15A0-F085 is a type of MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor), specifically a N-Channel MOSFET, designed for high-efficiency power switching applications. Its characteristics make it well-suited for a variety of roles in electronic circuits.

1. Primary Functionality: The FDD120AN15A0-F085 serves as an electronic switch or amplifier. It's particularly effective in applications requiring high current handling with minimal energy loss, thanks to its N-Channel design.

2. Usage in Automotive Applications: A typical use case for the FDD120AN15A0-F085 is in automotive electronic systems, such as in the control of electric motors for windows or mirrors. It is ideal for these applications due to its robustness and efficiency.

3. Key Specifications: This MOSFET is characterized by its high drain-source voltage capacity, low on-resistance, and fast switching capabilities. These features make it apt for high-performance and energy-efficient applications.

4. Electric Window Control Circuit: In an automotive electric window control circuit, the FDD120AN15A0-F085 can control the motor. Connect pin 1 (Drain) to the motor, pin 2 (Gate) to the control unit (which sends the operational signal, often a PWM signal), and pin 3 (Source) to the vehicle's ground. This setup allows precise control over the window motor, ensuring smooth operation.

5. Circuit Design Efficiency: It's essential to ensure the FDD120AN15A0-F085 is used within its optimal operational parameters, especially concerning the switching frequency and current handling, to maximize the efficiency and longevity of the device.

6. Voltage Regulation: Maintaining the gate-source voltage within safe limits is crucial for the longevity of the FDD120AN15A0-F085, avoiding stress that could lead to failure.

7. Thermal Management Considerations: Given the potential for heat generation in high-power applications, implementing appropriate cooling solutions, like heat sinks, is essential for maintaining operational integrity.

8. Incorporating Protective Measures: Including circuit protection mechanisms, such as overcurrent protection, can prevent potential damage to the FDD120AN15A0-F085, particularly important in the variable electrical environments of automotive applications.

In conclusion, the FDD120AN15A0-F085 N-Channel MOSFET is a highly effective component for automotive electronics, particularly for motor control applications like electric windows. Designing circuits with this MOSFET requires careful consideration of operational parameters, thermal management, and protective measures to ensure efficient and reliable performance.

FDD120AN15A0-F085 FAQ

1. How to order FDD120AN15A0-F085 on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that FDD120AN15A0-F085 is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the FDD120AN15A0-F085. All suppliers must pass our qualification reviews before they can publish their products including FDD120AN15A0-F085 on icwhale.com; we pay more attention to the channels and quality of FDD120AN15A0-F085 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the FDD120AN15A0-F085 price and inventory displayed accurate?

The price and inventory of FDD120AN15A0-F085 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of FDD120AN15A0-F085?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the FDD120AN15A0-F085 we delivered, we will accept the replacement or return of the FDD120AN15A0-F085 only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of FDD120AN15A0-F085.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
