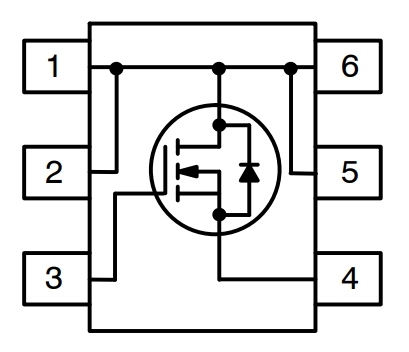

ON Semiconductor FDC5661N-F085

Part No.:: FDC5661N-F085

Manufacturer:: ON Semiconductor

Package:: SuperSOT™-6

Datasheet:: FDC5661N-F085.pdf

Description:: MOSFET N-CH 60V 4.3A SUPERSOT6

In Stock:: 3837

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FDC5661N-F085 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
Automotive, AEC-Q101, PowerTrench®
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
4.3A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
47mOhm @ 4.3A, 10V
Vgs(th)(Max)@Id:
3V @ 250µA
GateCharge(Qg)(Max)@Vgs:
19 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
763 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
1.6W (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount
