Name: FDB33N25TM
Brand: ON Semiconductor
SKU: FDB33N25TM
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ON Semiconductor FDB33N25TM

Part No.:: FDB33N25TM

Manufacturer:: ON Semiconductor

Package:: D²PAK (TO-263)

Datasheet:: FDB33N25TM.pdf

Description:: MOSFET N-CH 250V 33A D2PAK

In Stock:: 3773

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FDB33N25TM Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
UniFET™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
250 V
Current-ContinuousDrain(Id)@25°C:
33A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
94mOhm @ 16.5A, 10V
Vgs(th)(Max)@Id:
5V @ 250µA
GateCharge(Qg)(Max)@Vgs:
48 nC @ 10 V
Vgs(Max):
±30V
InputCapacitance(Ciss)(Max)@Vds:
2135 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
235W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

FDB33N25TM this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including FDB33N25TM price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for FDB33N25TM to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

FDB33N25TM information

Views：

FDB33N25TM Typical application Circuitry

FDB33N25TM

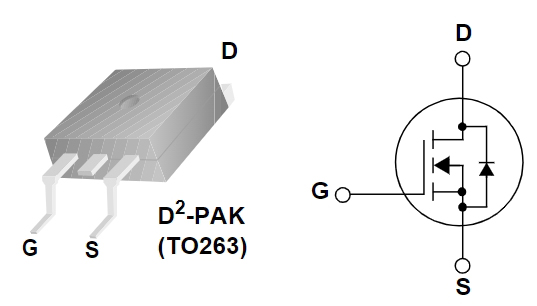

The FDB33N25TM is a high voltage N-channel MOSFET, which is part of the UniFET™ MOSFET family. This family is built using DMOS and planar stripe technologies. With a focus on lowering on-state resistance, improving switching efficiency, and increasing avalanche energy strength, the FDB33N25TM was created.

The uses of FDB33N25TM

The FDB33N25TM finds its applicability in numerous general-purpose uses. In particular, it works well with switching power converter applications such electronic light ballasts, TV power, flat panel displays (FPD), power factor correction (PFC), and ATX. This versatility is due to its high voltage and current capabilities along with efficient switching characteristics.

Key Specifications

- Drain to Source Breakdown Voltage: 250 V

- Continuous Drain Current (ID): 33 A

- Drain to Source Resistance (RDS(on)): 94 mΩ at VGS = 10 V

- Gate to Source Voltage (Vgs): ±30 V

- Max Power Dissipation: 235 W

- Low Gate Charge: 36.8 nC on average

- Low Reverse Transfer Capacitance (Crss): 39 pF on average - 100% Avalanche Tested: Ensures reliability in high-energy environments

Application Example: Power Factor Correction (PFC) Circuit

When designing a PFC circuit using the FDB33N25TM, consider the following key points:

1. Circuit Configuration: The MOSFET can be used in a boost converter topology which is common in PFC applications.

2. Gate Drive Considerations: Ensure that the gate drive circuitry can provide the appropriate voltage level (up to ±30 V) and charge (36.8 nC) to turn the MOSFET on and off efficiently.

3. Thermal Management: Given its max power dissipation of 235 W, adequate heat sinking or cooling mechanisms must be implemented to maintain operational stability.

4. Snubber Circuit: To protect the MOSFET from high voltage spikes, especially in inductive loads, a snubber circuit may be necessary.

5. Input/Output Filtering: To minimize electrical noise and ensure stable operation, proper input and output filtering components should be included.

6. Safety and Compliance: Ensure all components and the overall design comply with relevant electrical safety standards and regulations.

In the PFC circuit, the FDB33N25TM would typically be connected to the inductor, diode, and the control IC. The specific pin of the FDB33N25TM to be used would depend on the circuit design, with considerations for the drain, gate, and source connections based on the device's datasheet and the application requirements. Designing such a circuit requires a deep understanding of power electronics and should be done with consideration for all operational parameters and safety requirements.
