ON Semiconductor FDB2710

The FDB2710 is a high-performance N-Channel PowerTrench® MOSFET developed by ON Semiconductor, belonging to a series known for their exceptional efficiency, robustness, and versatility across various applications. This particular model is engineered to optimize power density and efficiency in applications such as synchronous rectification in SMPS (Switched Mode Power Supply), high-frequency DC-DC converters, and load switch applications. The FDB2710 is distinguished by its ability to handle high currents and voltages while maintaining low on-state resistance and fast switching performance, making it an ideal choice for power management tasks where efficiency is critical.

1. Power Supply Requirements and Voltage Operation: The FDB2710 is designed to operate efficiently within a broad voltage range, accommodating drain-source voltages (V_DS) up to 100V. This wide operating voltage range allows for versatile application across different power systems, ensuring compatibility with a variety of design requirements. For optimal performance, the device should be supplied with a gate-source voltage (V_GS) within the specified range, typically around 10V to 20V, to fully enhance the MOSFET's conductive state and switching capabilities.

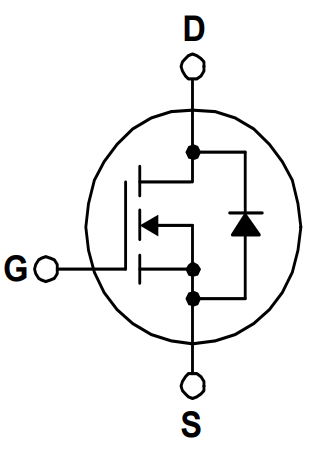

2. Pin Configuration for Effective Integration: The device is encased in a TO-263 package, featuring a three-pin layout that includes the Gate (G), Drain (D), and Source (S) terminals. The Gate pin is utilized to control the MOSFET's operational state by applying the necessary voltage to switch the device on or off. The Drain pin is intended for connection to the high-voltage supply line, and the Source pin connects to the load or system ground. Ensuring accurate and secure connections to these pins is paramount for the efficient functioning of the FDB2710 in any power system.

3. Efficient Connection Strategy for Enhanced Performance: To maximize the performance of the FDB2710, a strategic approach to connecting the device within a circuit is essential. This includes employing low-resistance paths for the Drain and Source connections to minimize conduction losses. The Gate drive circuit should be designed to provide rapid and clean transitions, minimizing the gate charge and discharge times, thus optimizing the device's switching efficiency. Close attention to the layout can further reduce parasitic inductances and capacitances, enhancing overall system performance.

4. Advanced Features for Superior Power Systems: The FDB2710 boasts several features that contribute to its high performance in demanding applications. These include an ultra-low on-state resistance (R_DS(on)) to reduce power losses during conduction, high avalanche energy capability for reliability under transient conditions, and enhanced thermal performance due to the PowerTrench technology. These characteristics enable the FDB2710 to deliver efficient and reliable performance, even in high-power and high-frequency applications.

5. Thermal Management and Device Protection: Given its power handling capabilities, the FDB2710 necessitates effective thermal management to maintain its performance and ensure device longevity. The TO-263 package is designed to facilitate heat dissipation, but depending on the application, additional cooling methods such as heat sinks or forced-air cooling might be required. Integrating thermal protection mechanisms can further safeguard the MOSFET from overheating, thereby enhancing the system's reliability.

6. Circuit Design Considerations for Optimizing Efficiency: Implementing the FDB2710 into a power management system involves careful consideration of the overall circuit design to optimize efficiency and reliability. This includes selecting appropriate gate resistors to control the switching speed and mitigate potential overshoots, as well as employing snubber circuits to protect against voltage spikes. Ensuring a stable and clean power supply to the gate driver and the MOSFET is also crucial for consistent performance.

7. Supporting Components for Comprehensive Circuit Integration: Achieving optimal performance with the FDB2710 extends beyond the MOSFET itself, necessitating the selection of high-quality supporting components. This includes choosing compatible gate drivers that can deliver the required driving strength, capacitors that provide adequate filtering and decoupling, and inductors that match the operational specifications of the power system. Careful selection of these components can significantly improve the efficiency, performance, and reliability of the application, making the FDB2710 a central component in the development of advanced power management solutions.

In summary, the FDB2710 from ON Semiconductor's PowerTrench series is a versatile and high-performance N-Channel MOSFET that offers engineers a reliable solution for enhancing power efficiency and performance across a wide range of applications. Its superior electrical characteristics, combined with strategic connection strategies and thermal management practices, make it an invaluable component in the design and implementation of efficient, high-power electronic systems.
