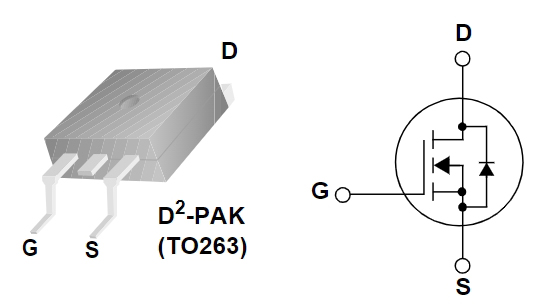

ON Semiconductor FDB075N15A_SN00284

Part No.:: FDB075N15A_SN00284

Manufacturer:: ON Semiconductor

Package:: D²PAK (TO-263)

Datasheet:

Description:: MOSFET N-CH 150V 130A D2PAK

In Stock:: 3899

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FDB075N15A_SN00284 Specifications

Packaging:
Tape & Reel (TR)
Series:
PowerTrench®
ProductStatus:
Obsolete
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
150 V
Current-ContinuousDrain(Id)@25°C:
130A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
7.5mOhm @ 100A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
100 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
7350 pF @ 75 V
FETFeature:
-
PowerDissipation(Max):
333W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount
