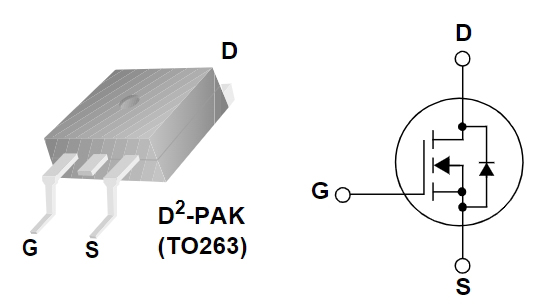

ON Semiconductor FDB075N15A-F085

Part No.:: FDB075N15A-F085

Manufacturer:: ON Semiconductor

Package:: D²PAK (TO-263)

Datasheet:: FDB075N15A-F085.pdf

Description:: MOSFET N-CH 150V 110A D2PAK

In Stock:: 2562

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FDB075N15A-F085 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101, PowerTrench®
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
150 V
Current-ContinuousDrain(Id)@25°C:
110A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
7.5mOhm @ 80A, 10V
Vgs(th)(Max)@Id:
4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
95 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
5595 pF @ 75 V
FETFeature:
-
PowerDissipation(Max):
333W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount
