Name: FDA59N25
Brand: onsemi
SKU: FDA59N25
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

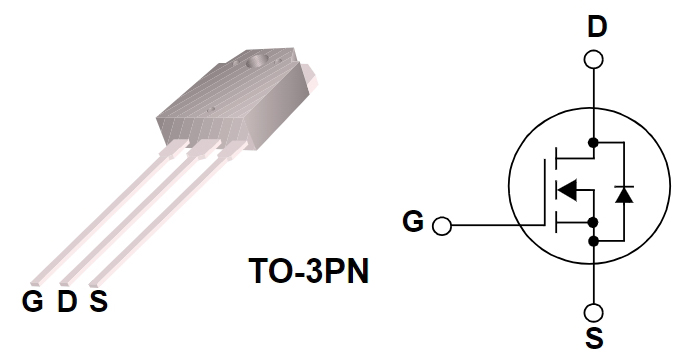

onsemi FDA59N25

Part No.:: FDA59N25

Manufacturer:: onsemi

Package:: TO-3PN

Datasheet:: FDA59N25.pdf

Description:: MOSFET N-CH 250V 59A TO3PN

In Stock:: 2546

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FDA59N25 Specifications

Packaging:
Bulk,Tube
Series:
UniFET™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
250 V
Current-ContinuousDrain(Id)@25°C:
59A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
49mOhm @ 29.5A, 10V
Vgs(th)(Max)@Id:
5V @ 250µA
GateCharge(Qg)(Max)@Vgs:
82 nC @ 10 V
Vgs(Max):
±30V
InputCapacitance(Ciss)(Max)@Vds:
4020 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
392W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Through Hole
