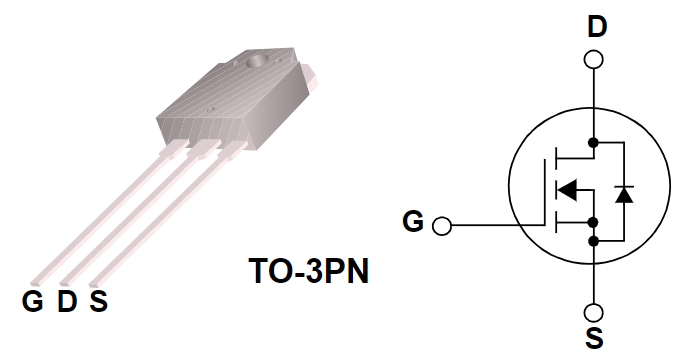

ON Semiconductor FDA28N50

Part No.:: FDA28N50

Manufacturer:: ON Semiconductor

Package:: TO-3PN

Datasheet:: FDA28N50.pdf

Description:: MOSFET N-CH 500V 28A TO3PN

In Stock:: 2579

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

FDA28N50 Specifications

Packaging:
Tube
Series:
UniFET™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
500 V
Current-ContinuousDrain(Id)@25°C:
28A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
10V
RdsOn(Max)@IdVgs:
155mOhm @ 14A, 10V
Vgs(th)(Max)@Id:
5V @ 250µA
GateCharge(Qg)(Max)@Vgs:
105 nC @ 10 V
Vgs(Max):
±30V
InputCapacitance(Ciss)(Max)@Vds:
5140 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
310W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Through Hole
