ON Semiconductor FCPF067N65S3

The FCPF067N65S3 is a prominent member of ON Semiconductor's SuperFET III MOSFET series, renowned for its exceptional efficiency and high performance in power conversion. This series is specifically designed to address the stringent requirements of modern high-voltage applications, including but not limited to, electric vehicle (EV) chargers, solar power inverters, and uninterruptible power supplies (UPS). The FCPF067N65S3 excels with its high drain-source voltage (V_DS) capability, low on-resistance (R_DS(on)), and fast switching speeds, making it an ideal choice for systems that demand superior power efficiency and reliability.

1. Electrical Supply Requirements and Voltage Operation: The FCPF067N65S3 operates at a drain-source voltage (V_DS) up to 650V, offering a wide safety margin for high-voltage power systems. Its gate-source voltage (V_GS) range is specified for safe operation, typically ±30V, facilitating flexible and robust gate drive strategies. The device's power supply requirements are aligned with its high-voltage operation, necessitating careful consideration of the power source to ensure stable and efficient functionality across various conditions.

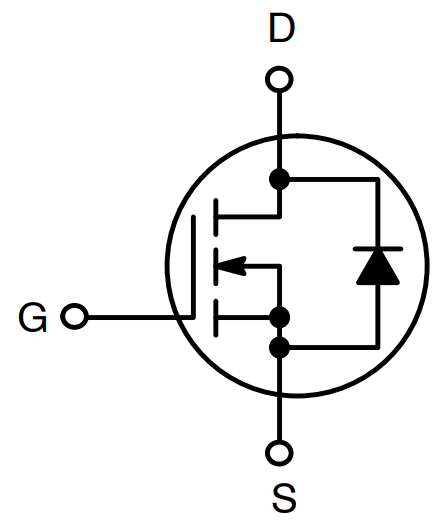

2. Pin Configuration for Effective Integration: Encapsulated in a TO-220 package, the FCPF067N65S3 features a three-pin configuration: Gate (G), Drain (D), and Source (S). The gate pin is essential for managing the MOSFET's operating state; to efficiently transition the device between the on and off states, accurate voltage driving is needed. The Drain pin is connected to the high-voltage supply, and the Source pin is typically grounded or connected to the low side of the load, ensuring optimal current flow through the device.

3. Efficient Connection Strategy for Optimized Performance: To harness the FCPF067N65S3's capabilities fully, implementing an efficient connection strategy is paramount. This includes employing low-inductance routing for the Gate, Drain, and Source connections to minimize parasitic effects that could impede the MOSFET's switching performance and efficiency. Additionally, incorporating appropriate decoupling capacitors close to the device can help stabilize the supply voltage and reduce noise, enhancing overall system reliability.

4. Advanced Features for High-Performance Applications: The FCPF067N65S3 is equipped with advanced technological features that set it apart in power conversion applications. These include a very low on-resistance (R_DS(on)) to minimize conduction losses, a fast body diode with reduced reverse recovery time for efficient freewheeling operations, and enhanced avalanche ruggedness for increased reliability under abnormal conditions. These attributes contribute significantly to the MOSFET's efficiency and robustness in demanding applications.

5. Thermal Management and Device Protection: Given its capacity to manage high power levels, effective thermal management is critical for maintaining the FCPF067N65S3's longevity and performance. The TO-220 package is designed to facilitate heat dissipation, but additional thermal solutions, such as heat sinks or forced air cooling, may be necessary depending on the application's power density. Implementing over-temperature protection and monitoring the device's operating conditions are also advisable to prevent thermal overload and ensure safe operation.

6. Circuit Design Considerations for Enhanced System Reliability: Designing a circuit with the FCPF067N65S3 involves thorough consideration of the entire system to achieve enhanced reliability and efficiency. This includes selecting suitable gate resistors to optimize the switching speed, implementing snubber circuits to protect against voltage spikes, and ensuring a stable power supply for consistent performance. A well-thought-out PCB layout that minimizes loop areas and employs proper grounding techniques can further improve the system's electromagnetic compatibility (EMC) and reliability.

7. Supporting Circuit Components for Comprehensive System Design: Achieving optimal performance with the FCPF067N65S3 requires careful selection of supporting components, including gate drivers, capacitors, and inductors, that match the MOSFET's specifications and the system's requirements. High-quality components with appropriate ratings and low parasitic characteristics can significantly enhance the system's efficiency, performance, and durability, ensuring successful integration into high-voltage power conversion applications.

In conclusion, the FCPF067N65S3 from ON Semiconductor's SuperFET III series is an advanced MOSFET that offers a compelling solution for designers seeking high efficiency, fast switching, and robust operation in their power systems. Its superior electrical characteristics, combined with strategic connection methodologies, advanced features, and thoughtful circuit design, make it an excellent choice for a wide range of high-voltage applications, driving forward innovations in power conversion and management.
