ON Semiconductor FCH041N60F

The FCH041N60F is a high-performance SuperFET® II MOSFET from ON Semiconductor, renowned for its exceptional efficiency and thermal performance. This device is part of the SuperFET II series, designed to meet the demanding requirements of high-power applications such as power supplies, inverters, and converters in sectors like renewable energy, automotive, and industrial systems. The FCH041N60F distinguishes itself with its low on-resistance (R_DS(on)), fast switching speed, and robustness against harsh conditions, making it an ideal choice for engineers looking to optimize their power systems for efficiency and reliability.

1. Power Supply Requirements and Voltage Operation: The FCH041N60F is engineered to operate efficiently with a drain-source voltage (V_DS) up to 600V, accommodating a wide range of high-voltage applications. This wide voltage range is beneficial for systems requiring high voltage handling capability while maintaining efficient operation. The device typically operates with a gate-source voltage (V_GS) within ±30V, allowing for flexible gate drive designs that can optimize the MOSFET's switching performance.

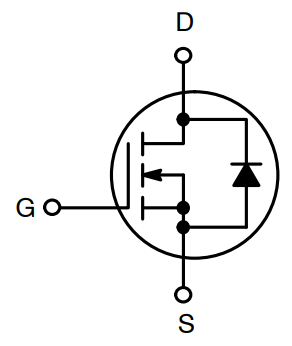

2. Pin Configuration for Effective Integration: This MOSFET is housed in a TO-247 package, featuring three essential pins: Gate (G), Drain (D), and Source (S). The drain pin is connected to the high-voltage supply, the source pin is connected to the load or ground, and the gate pin regulates the MOSFET's switching state. Proper connection of these pins is crucial for the MOSFET's operation, with particular attention needed to ensure that the Gate pin is driven with an appropriate voltage level to switch the device on and off efficiently.

3. Advanced Features for High-Performance Applications: The FCH041N60F incorporates several advanced features that enhance its performance in power conversion systems. These include a very low R_DS(on) to minimize conduction losses, a high gate charge (Q_g) to fast switching capability, and a rugged body diode with a fast reverse recovery, which is crucial for high-efficiency switching applications. Because of these features, the MOSFET is a great choice for devices like power inverters and switch-mode power supplies that need to handle large amounts of power efficiently and quickly.

4. Thermal Management and Device Protection: Given its capability to handle high power levels, the FCH041N60F requires effective thermal management to ensure reliability and longevity. Although the TO-247 package is intended to aid in heat dissipation, further actions, such as heat sinks and thermal interface materials, may be required in light of the power density and ambient temperature of the application. Additionally, circuit protection features should be considered to protect the MOSFET from over-current, over-voltage, and excessive temperature conditions.

5. Connection Methodology for Optimized Efficiency: To maximize the efficiency and performance of the FCH041N60F in a circuit, it is essential to minimize resistive and inductive parasitics in the connections to the Gate, Drain, and Source pins. This can be achieved by using short, wide traces for the Drain and Source connections and by placing gate driving circuits as close to the MOSFET as possible. Employing proper decoupling techniques and ensuring a solid ground connection are also critical to prevent oscillations and ensure stable operation.

6. Design Considerations for Enhanced System Reliability: Integrating the FCH041N60F into a power system involves careful consideration of the entire design to ensure enhanced system reliability. This includes selecting appropriate gate resistors to control the MOSFET's switching speed, designing snubber circuits to protect against voltage transients, and implementing a comprehensive monitoring scheme that can detect and react to fault conditions quickly.

7. Supporting Components for Comprehensive Circuit Design: To fully leverage the capabilities of the FCH041N60F, selecting supporting components that match the MOSFET's specifications is essential. This includes choosing gate drivers that can provide the necessary drive strength and protection features, as well as selecting capacitors and inductors that meet the operational requirements of the application. High-quality components can significantly improve the overall efficiency and performance of the power conversion system, contributing to the device's success in demanding applications.

In conclusion, the FCH041N60F from ON Semiconductor's SuperFET II series is a powerful MOSFET that offers a compelling combination of high voltage handling, low on-resistance, fast switching speeds, and robust thermal performance. Its advanced features and design flexibility make it well-suited for a wide range of high-power applications, where efficiency and reliability are paramount. With careful attention to connection strategies, thermal management, and component selection, designers can effectively harness the FCH041N60F's capabilities to enhance the performance and efficiency of their power systems.
