What is the Additional Feature ?

Name: CSD19537Q3T
Brand: Texas Instruments
SKU: CSD19537Q3T
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments CSD19537Q3T

Part No.:: CSD19537Q3T

Manufacturer:: Texas Instruments

Package:: 8-VSON (3.3x3.3)

Datasheet:: CSD19537Q3T.pdf

Description:: MOSFET N-CH 100V 50A 8VSON

In Stock:: 3756

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CSD19537Q3T Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
NexFET™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
100 V
Current-ContinuousDrain(Id)@25°C:
50A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
6V, 10V
RdsOn(Max)@IdVgs:
14.5mOhm @ 10A, 10V
Vgs(th)(Max)@Id:
3.6V @ 250µA
GateCharge(Qg)(Max)@Vgs:
21 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
1680 pF @ 50 V
FETFeature:
-
PowerDissipation(Max):
2.8W (Ta), 83W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

CSD19537Q3T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CSD19537Q3T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CSD19537Q3T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CSD19537Q3T information

Views：

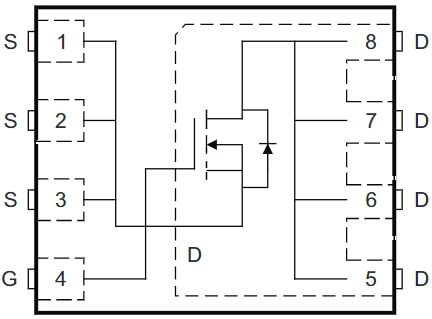

CSD19537Q3T Typical application Circuitry

CSD19537Q3T

The CSD19537Q3T is part of the NexFET™ series, a range of power MOSFETs known for their high efficiency and performance in power management and conversion applications. These MOSFETs are specifically designed to offer low on-resistance, high power density, and superior switching performance, making the CSD19537Q3T suitable for a variety of applications including DC-DC converters, power supplies, and motor drives. The CSD19537Q3T is noted for its ability to efficiently handle high currents and voltages, characterized by reduced power losses and effective thermal management, making it an essential component in high-performance power systems.

1. Drain Pin (D): The Drain pin of the CSD19537Q3T is typically connected to the higher potential side of the load. In a high-side switch configuration, it connects to the load's positive terminal, while in a low-side switch configuration, it's connected to the circuit's ground.

2. Source Pin (S): The Source pin is another major terminal of the MOSFET. In high-side switching, it's connected to the negative side of the load, and in low-side switching, it's typically tied to the circuit's ground or a common reference point.

3. Gate Pin (G): The Gate pin is crucial for controlling the MOSFET's operation. It should be connected to a gate driver circuit or a microcontroller output, where the voltage at the Gate pin regulates the on/off state of the MOSFET.

4. Power Supply Connections: It's important to ensure that the voltage across the Drain and Source terminals does not exceed the CSD19537Q3T's maximum voltage rating to maintain safe operation.

5. Gate Drive Circuitry: A suitable gate drive circuit is necessary for the efficient functioning of the MOSFET. The voltage and current needed to swiftly switch on and off the MOSFET should be supplied by this circuit.

6. Flyback Diode for Inductive Loads: When using the MOSFET with inductive loads, it's advisable to use a flyback diode across the load to protect the MOSFET from voltage spikes caused by inductive kickback.

7. Thermal Management: Proper heat dissipation methods, such as heatsinking, are important in high-current or high-frequency switching applications to prevent overheating of the MOSFET.

8. PCB Layout Design: The PCB layout should minimize resistance and inductance in the paths connecting the Drain, Source, and Gate terminals. Additionally, the design should accommodate the current handling and thermal dissipation needs of the MOSFET.

In conclusion, the CSD19537Q3T from the NexFET™ MOSFET series is ideal for high-efficiency power conversion and management applications. Effective implementation involves correct connections for the Drain, Source, and Gate terminals, suitable power supply configuration, gate driving, protection for inductive loads, efficient thermal management, and a carefully designed PCB layout to ensure optimal performance and reliability in power-intensive systems.

CSD19537Q3T FAQ

1. How to order CSD19537Q3T on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that CSD19537Q3T is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the CSD19537Q3T. All suppliers must pass our qualification reviews before they can publish their products including CSD19537Q3T on icwhale.com; we pay more attention to the channels and quality of CSD19537Q3T products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the CSD19537Q3T price and inventory displayed accurate?

The price and inventory of CSD19537Q3T fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of CSD19537Q3T?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the CSD19537Q3T we delivered, we will accept the replacement or return of the CSD19537Q3T only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of CSD19537Q3T.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
