Texas Instruments CSD19505KCS

Part No.:: CSD19505KCS

Manufacturer:: Texas Instruments

Package:: TO-220-3

Datasheet:: CSD19505KCS.pdf

Description:: MOSFET N-CH 80V 150A TO220-3

In Stock:: 3143

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CSD19505KCS Specifications

Packaging:
Tube
Series:
NexFET™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
80 V
Current-ContinuousDrain(Id)@25°C:
150A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
6V, 10V
RdsOn(Max)@IdVgs:
3.8mOhm @ 100A, 6V
Vgs(th)(Max)@Id:
3.2V @ 250µA
GateCharge(Qg)(Max)@Vgs:
76 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
7820 pF @ 40 V
FETFeature:
-
PowerDissipation(Max):
300W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Through Hole

CSD19505KCS this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CSD19505KCS price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CSD19505KCS to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CSD19505KCS information

Views：

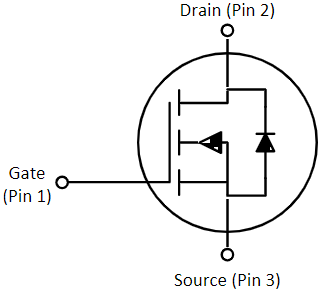

CSD19505KCS Typical application Circuitry

CSD19505KCS

The CSD19505KCS is a significant member of the NexFET™ power MOSFET series, designed for high-efficiency power conversion in a wide range of applications. This series is characterized by MOSFETs that offer low on-resistance, high power density, and exceptional switching capabilities, making them ideal for various applications such as power supplies, DC-DC converters, and motor drives. The CSD19505KCS is known for its robust performance, capable of handling high currents and voltages, thereby facilitating efficient power management in demanding applications.

1. Drain Pin (D): The Drain pin of the CSD19505KCS is typically connected to the load's higher voltage side. In a high-side switch configuration, it's connected to the positive side of the load, whereas, in a low-side switch configuration, it's connected to the ground.

2. Source Pin (S): The Source pin is another major terminal of the MOSFET. In high-side switching, this pin connects to the load's negative side, while in low-side switching, it is usually tied to the ground or a common reference point in the circuit.

3. Gate Pin (G): The Gate pin is essential for controlling the MOSFET's operation. It should be connected to a gate driver or a microcontroller output. The applied voltage at the Gate pin governs the on/off state of the MOSFET.

4. Power Supply Connections: It's important to ensure that the voltage across the Drain and Source pins does not exceed the CSD19505KCS's maximum voltage rating to maintain safe operation.

5. Gate Drive Circuit: A proper gate drive circuit is crucial for the MOSFET's efficient functioning. It must be able to supply enough voltage and current to quickly turn the MOSFET on and off.

6. Flyback Diode for Inductive Loads: In circuits with inductive loads, a flyback diode is recommended across the load to protect the MOSFET from high-voltage spikes caused by inductive kickback.

7. Thermal Management: Due to the high-power nature of the CSD19505KCS, implementing effective heat dissipation methods, such as heatsinks, is crucial, particularly in applications with high currents or high switching frequencies.

8. PCB Layout Design: The PCB layout should minimize resistance and inductance in the paths connecting the Drain, Source, and Gate. Additionally, the design should accommodate the current handling and thermal dissipation needs of the MOSFET.

In summary, the CSD19505KCS from the NexFET™ MOSFET series is optimized for high-efficiency power conversion and management. Effective implementation involves correct connections for the Drain, Source, and Gate, suitable power supply configuration, gate driving, inductive load protection, efficient thermal management, and a carefully designed PCB layout to ensure optimal performance and reliability in power-intensive applications.
