Texas Instruments CSD19502Q5B

Part No.:: CSD19502Q5B

Manufacturer:: Texas Instruments

Package:: 8-VSON-CLIP (5x6)

Datasheet:: CSD19502Q5B.pdf

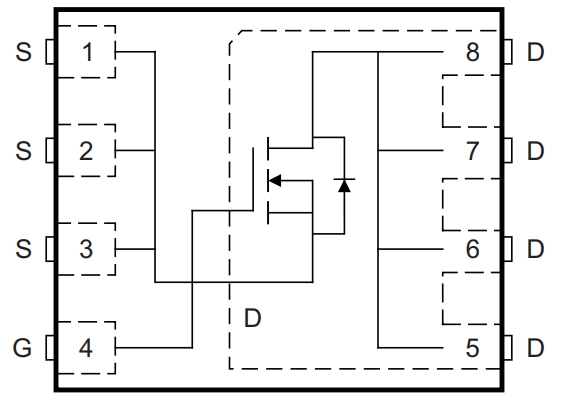

Description:: MOSFET N-CH 80V 100A 8VSON

In Stock:: 2275

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CSD19502Q5B Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
NexFET™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
80 V
Current-ContinuousDrain(Id)@25°C:
100A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
6V, 10V
RdsOn(Max)@IdVgs:
4.1mOhm @ 19A, 10V
Vgs(th)(Max)@Id:
3.3V @ 250µA
GateCharge(Qg)(Max)@Vgs:
62 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
4870 pF @ 40 V
FETFeature:
-
PowerDissipation(Max):
3.1W (Ta), 195W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

CSD19502Q5B this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CSD19502Q5B price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CSD19502Q5B to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CSD19502Q5B information

Views：

CSD19502Q5B Typical application Circuitry

CSD19502Q5B

The CSD19502Q5B is a NexFET™ power MOSFET designed by Texas Instruments, primarily for high-efficiency power conversion applications. This N-channel MOSFET is ideal for a variety of power supply and switching applications because to its low on-resistance and excellent current handling capacity.

Application Scenarios: The CSD19502Q5B is commonly used in DC-DC converters, motor drives, power inverters, and other power management circuits where high efficiency and reliability are required.

Key Features:

1. Low On-Resistance (RDS(on)): Ensures high efficiency in power conversion by minimizing conduction losses.

2. High Continuous Drain Current (ID): Fit for uses where a high current-handling capacity is needed.

3. Fast Switching Speed: Provides efficient switching performance for high-frequency power conversion.

4. Robust Thermal Performance: Designed to handle high power dissipation with good thermal characteristics.

Example Circuit Design for a Motor Drive Application:

1. Power Input Connection: Connect the positive terminal of the power supply to the drain of the CSD19502Q5B MOSFET.

2. Motor Connection: Attach the motor's negative terminal to the power supply's negative terminal and its positive terminal to the MOSFET's source.

3. Gate Drive: Connect the CSD19502Q5B gate of the MOSFET to a PWM signal generated by a microcontroller or a gate driver IC to control the motor speed.

4. Freewheeling Diode: Place a freewheeling diode across the motor terminals to provide a path for the motor's inductive kickback when the MOSFET is turned off.

Design Points to Remember:

- Gate Drive Voltage: Verify that the gate drive voltage is both within the maximum gate-source voltage (VGS) rating of the MOSFET and adequate to turn it on completely.

- Switching Frequency: Choose a switching frequency that balances efficiency and electromagnetic interference (EMI) concerns.

- Thermal Management: Implement proper heat sinking and cooling measures to prevent overheating of the MOSFET during high-power operation.

- Protection Circuits: Incorporate overcurrent and overvoltage protection circuits to safeguard the MOSFET and the motor from potential damage.

Incorporating the CSD19502Q5B into a motor drive circuit requires attention to gate drive requirements, thermal management, and protection mechanisms to ensure efficient and reliable operation.
