Name: CSD18563Q5AT
Brand: Texas Instruments
SKU: CSD18563Q5AT
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments CSD18563Q5AT

Part No.:: CSD18563Q5AT

Manufacturer:: Texas Instruments

Package:: 8-VSONP (5x6)

Datasheet:: CSD18563Q5AT.pdf

Description:: MOSFET N-CH 60V 100A 8VSON

In Stock:: 1640

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CSD18563Q5AT Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
NexFET™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
100A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
6.8mOhm @ 18A, 10V
Vgs(th)(Max)@Id:
2.4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
20 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
1500 pF @ 30 V
FETFeature:
-
PowerDissipation(Max):
3.2W (Ta), 116W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

CSD18563Q5AT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CSD18563Q5AT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CSD18563Q5AT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CSD18563Q5AT information

Views：

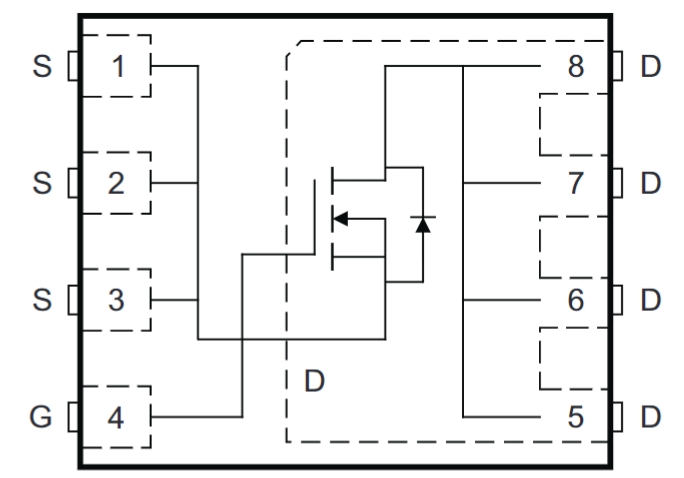

CSD18563Q5AT Typical application Circuitry

CSD18563Q5AT

The CSD18563Q5AT is a high-performance N-Channel MOSFET developed by Texas Instruments, designed for applications requiring efficient power management and conversion. This device is part of TI's NexFET™ lineup, known for their low on-resistance (R_DS(on)), high efficiency, and robust thermal performance, making them suitable for a wide range of power applications.

Application Scenarios:

The CSD18563Q5AT is ideal for use in DC-DC converters, motor drives, power supply units, and other power management systems across automotive, industrial, and consumer electronics sectors. Its efficiency and thermal characteristics make it particularly well-suited for synchronous buck converter circuits, where minimizing power loss and managing heat are crucial.

Characteristic Parameters:

- Low R_DS(on): Ensures minimal conduction losses, enhancing overall system efficiency.

- High Current Capability: Capable of handling high levels of current, making it suitable for applications with significant power requirements.

- Fast Switching Performance: Offers fast switching speeds, reducing energy loss during switching transitions.

- Excellent Thermal Management: Designed to operate effectively under high thermal conditions, ensuring reliability and longevity in demanding applications.

Circuit Connection for a Synchronous Buck Converter:

1. Input Voltage Supply: Connect the input voltage source to the drain of the high-side MOSFET (not the CSD18563Q5AT but another MOSFET appropriate for the high-side switch).

2. Low-Side Switch Connection: The CSD18563Q5AT serves as the low-side switch. Connect its source to the circuit ground and its drain to one end of the output inductor, which is part of the LC filter network that smooths the converter's output.

3. Gate Drive Configuration: Use a gate driver IC to control the CSD18563Q5AT's gate. This setup should ensure that the MOSFET is fully turned on and off at the appropriate times, minimizing switching losses. The gate driver should be capable of delivering sufficient drive current for rapid gate charging and discharging.

4. Bootstrap Circuitry for High-Side MOSFET: Although not directly related to the CSD18563Q5AT, implementing a bootstrap circuit for the high-side MOSFET's gate drive is crucial in a synchronous buck converter. This involves a bootstrap diode and capacitor connected to the high-side gate driver.

5. Output Filtering: Connect the other end of the output inductor to the positive terminal of the output capacitor, which then connects back to the circuit ground. This LC filter network helps to smooth out the ripple in the output voltage.

Design Considerations:

- Dead Time Optimization: Properly configure the dead time between the high-side and low-side MOSFETs to prevent simultaneous conduction, which could lead to shoot-through current and damage the CSD18563Q5AT.

- Thermal Management: Given the power dissipation during operation, ensure adequate cooling for the CSD18563Q5AT, potentially through heat sinks or improved PCB thermal design.

- PCB Layout: Minimize the loop area between the high-side and low-side MOSFETs, the input capacitor, and the output inductor to reduce parasitic inductances and minimize EMI.

- Protection Features: Incorporate over-current, over-voltage, and thermal protection mechanisms to protect the CSD18563Q5AT and the entire circuit from adverse conditions.

In deploying the CSD18563Q5AT in a synchronous buck converter, its attributes of low R_DS(on), high current handling, and efficient thermal management are leveraged to achieve efficient power conversion. Attention to detail in circuit layout, thermal management, and protective measures ensures the longevity and reliability of the application, illustrating the CSD18563Q5AT's value in high-performance power systems.
