What is the Additional Feature ?

Name: CSD18543Q3AT
Brand: Texas Instruments
SKU: CSD18543Q3AT
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments CSD18543Q3AT

Part No.:: CSD18543Q3AT

Manufacturer:: Texas Instruments

Package:: 8-VSONP (3x3.15)

Datasheet:: CSD18543Q3AT.pdf

Description:: MOSFET N-CH 60V 12A/60A 8VSON

In Stock:: 3291

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CSD18543Q3AT Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
NexFET™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
12A (Ta), 60A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
15.6mOhm @ 12A, 4.5V
Vgs(th)(Max)@Id:
2.7V @ 250µA
GateCharge(Qg)(Max)@Vgs:
14.5 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
1150 pF @ 30 V
FETFeature:
Standard
PowerDissipation(Max):
66W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

CSD18543Q3AT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CSD18543Q3AT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CSD18543Q3AT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CSD18543Q3AT information

Views：

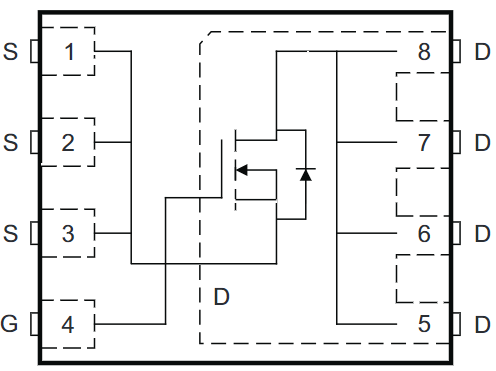

CSD18543Q3AT Typical application Circuitry

CSD18543Q3AT

The CSD18543Q3AT is a variant within the NexFET™ series of power MOSFETs, renowned for their exceptional performance in power conversion and management. This series is especially tailored for applications that require low on-resistance, high efficiency, and robust switching capabilities. The CSD18543Q3AT is particularly suited for a variety of high-demand applications, including DC-DC converters, power supplies, and motor drives, where efficient power handling and management are crucial.

1. Drain Pin (D): The Drain pin of the CSD18543Q3AT is typically connected to the high-voltage side of the load. In a high-side switching configuration, it would be linked to the positive terminal of the load, while in a low-side configuration, it would connect to the circuit's ground.

2. Source Pin (S): The Source pin is another key terminal of the MOSFET. In a high-side switch, this pin would connect to the load's negative terminal, and in a low-side switch, it would usually be connected to the circuit's ground or a common reference point.

3. Gate Pin (G): The Gate pin is critical for controlling the MOSFET's operation. This pin should be connected to a gate driver circuit or a microcontroller output. The MOSFET's switching states are controlled by the voltage that is applied to its gate pin.

4. Power Supply Connections: It's important to ensure that the voltage applied across the Drain and Source pins does not exceed the CSD18543Q3AT's maximum voltage rating, to safeguard the MOSFET's operation.

5. Gate Drive Circuitry: A properly designed gate drive circuit is necessary for the efficient operation of the MOSFET. The circuit should provide enough voltage and current to rapidly switch the MOSFET on and off.

6. Flyback Diode for Inductive Loads: When using the MOSFET with inductive loads, a flyback diode should be placed across the load. This diode protects the MOSFET from potential voltage spikes due to inductive kickback.

7. Thermal Management: Adequate heat dissipation methods, like heatsinking, are vital in high-current or high-frequency switching applications to prevent overheating of the MOSFET.

8. PCB Layout Design: The PCB layout should be designed to minimize resistance and inductance in the paths between the Drain, Source, and Gate. Additionally, the layout should accommodate the current handling and heat dissipation requirements of the MOSFET.

In conclusion, the CSD18543Q3AT from the NexFET™ MOSFET series is ideal for applications that demand efficient power conversion and control. Effective implementation includes correct connections for the Drain, Source, and Gate, appropriate power supply configuration, gate driving, protection for inductive loads, effective thermal management, and a well-thought-out PCB layout to ensure optimal performance and reliability in power management systems.

CSD18543Q3AT FAQ

1. How to order CSD18543Q3AT on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that CSD18543Q3AT is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the CSD18543Q3AT. All suppliers must pass our qualification reviews before they can publish their products including CSD18543Q3AT on icwhale.com; we pay more attention to the channels and quality of CSD18543Q3AT products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the CSD18543Q3AT price and inventory displayed accurate?

The price and inventory of CSD18543Q3AT fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of CSD18543Q3AT?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the CSD18543Q3AT we delivered, we will accept the replacement or return of the CSD18543Q3AT only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of CSD18543Q3AT.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
