Name: CSD18543Q3A
Brand: Texas Instruments
SKU: CSD18543Q3A
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments CSD18543Q3A

Part No.:: CSD18543Q3A

Manufacturer:: Texas Instruments

Package:: 8-VSONP (3x3.15)

Datasheet:: CSD18543Q3A.pdf

Description:: MOSFET N-CH 60V 60A 8VSON

In Stock:: 2828

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CSD18543Q3A Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
NexFET™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
60A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
9.9mOhm @ 12A, 10V
Vgs(th)(Max)@Id:
2.7V @ 250µA
GateCharge(Qg)(Max)@Vgs:
14.5 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
1150 pF @ 30 V
FETFeature:
Standard
PowerDissipation(Max):
66W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

CSD18543Q3A this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CSD18543Q3A price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CSD18543Q3A to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CSD18543Q3A information

Views：

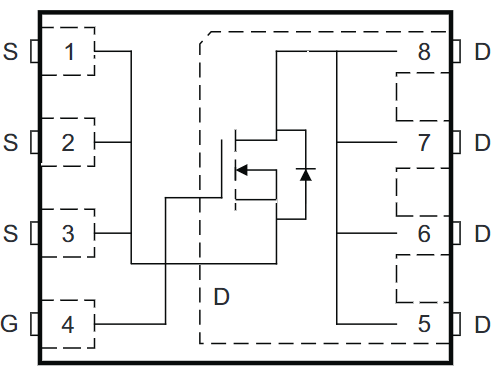

CSD18543Q3A Typical application Circuitry

CSD18543Q3A

The CSD18543Q3A is part of the NexFET™ series, a collection of power MOSFETs known for their efficiency and high performance in power management and conversion. This series is particularly designed for applications that demand low on-resistance and high switching performance, making the CSD18543Q3A suitable for a variety of applications including DC-DC converters, power supplies, and motor drives. The CSD18543Q3A is recognized for its ability to efficiently handle high currents and voltages, characterized by reduced power losses and effective thermal management, essential in modern power-intensive applications.

1. Drain Pin (D): The Drain pin of the CSD18543Q3A is usually connected to the higher voltage side of the load. In a high-side switch configuration, it is connected to the load's positive terminal, whereas in a low-side switch configuration, it is connected to the circuit's ground.

2. Source Pin (S): The Source pin is another major terminal of the MOSFET. For high-side switching, it should be connected to the load's negative terminal, and in low-side switching, it is typically connected to the circuit's ground or common reference point.

3. Gate Pin (G): The Gate pin is crucial for controlling the operation of the MOSFET. This pin should be connected to the output of a gate driver circuit or a microcontroller, as the voltage applied to the Gate controls the on and off states of the MOSFET.

4. Power Supply Connection: Ensure that the power supply voltage across the Drain and Source pins does not exceed the maximum rating of the CSD18543Q3A to maintain safe operation.

5. Gate Drive Circuitry: A suitable gate drive circuit is essential for the efficient functioning of the MOSFET. It should provide adequate voltage and current to effectively switch the MOSFET between its on and off states rapidly.

6. Flyback Diode for Inductive Loads: If the MOSFET is used in circuits with inductive loads, a flyback diode is recommended across the load to protect the MOSFET from voltage spikes due to inductive kickback.

7. Thermal Management: Proper heat dissipation methods, such as heatsinking, are important in high-current or high-frequency switching applications to prevent the MOSFET from overheating.

8. PCB Layout Design: The PCB layout should be designed to minimize resistance and inductance in the paths connecting the Drain, Source, and Gate. It should also accommodate the current handling and heat dissipation needs of the MOSFET.

In summary, the CSD18543Q3A from the NexFET™ MOSFET series is optimized for high-efficiency power conversion and management. Effective implementation includes accurate connections for the Drain, Source, and Gate, appropriate power supply arrangements, gate driving, protection against inductive loads, effective thermal management, and a carefully planned PCB layout to ensure optimal performance and reliability in power-intensive systems.
