What is the Additional Feature ?

Name: CSD18537NQ5A
Brand: Texas Instruments
SKU: CSD18537NQ5A
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments CSD18537NQ5A

Part No.:: CSD18537NQ5A

Manufacturer:: Texas Instruments

Package:: 8-VSONP (5x6)

Datasheet:: CSD18537NQ5A.pdf

Description:: MOSFET N-CH 60V 50A 8VSON

In Stock:: 2549

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CSD18537NQ5A Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
NexFET™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
50A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
6V, 10V
RdsOn(Max)@IdVgs:
13mOhm @ 12A, 10V
Vgs(th)(Max)@Id:
3.5V @ 250µA
GateCharge(Qg)(Max)@Vgs:
18 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
1480 pF @ 30 V
FETFeature:
-
PowerDissipation(Max):
3.2W (Ta), 75W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

CSD18537NQ5A this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CSD18537NQ5A price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CSD18537NQ5A to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CSD18537NQ5A information

Views：

CSD18537NQ5A Typical application Circuitry

CSD18537NQ5A

The CSD18537NQ5A is a component of the NexFET™ series, a line of power MOSFETs celebrated for their high efficiency and performance in power conversion applications. This series is designed to provide low on-resistance, high switching speed, and reduced power losses, making them particularly suitable for use in various applications including DC-DC converters, power supplies, and motor drives. Because of its reputation for strength and dependability, the CSD18537NQ5A is a great option for applications requiring efficient power management and control.

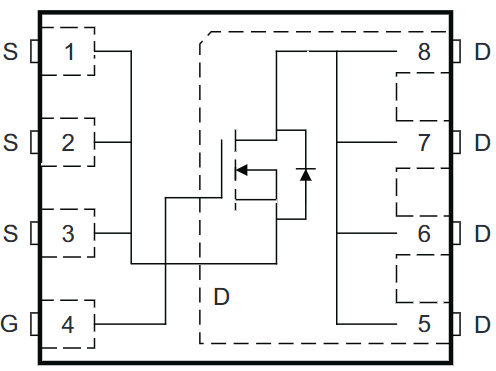

1. Drain Pin (D): The Drain pin is typically connected to the high voltage side of the load. For high-side switching applications, it connects to the positive terminal of the load, whereas in low-side switching configurations, it often connects to the circuit's ground.

2. Source Pin (S): The Source pin serves as another key terminal of the MOSFET. In high-side switching, it is connected to the lower side of the load, and in low-side switching, it is usually tied to the ground or a common reference point in the circuit.

3. Gate Pin (G): The Gate pin is crucial for controlling the MOSFET's operation. Connect this pin to a gate driver or a microcontroller output. The voltage applied to the Gate pin manages the on/off state of the MOSFET, and it should be carefully regulated to ensure proper functionality.

4. Power Supply Connections: It is important to ensure that the voltage across the Drain and Source terminals does not exceed the maximum rating of the CSD18537NQ5A to maintain safe operation.

5. Gate Drive Configuration: A suitable gate drive circuit is essential for the efficient functioning of the MOSFET. This circuit should supply sufficient voltage and current to effectively switch the MOSFET between its on and off states.

6. Flyback Diode for Inductive Loads: In circuits with inductive loads, it is recommended to use a flyback diode across the load to protect the MOSFET from potential high-voltage spikes due to inductive kickback.

7. Thermal Management: Proper heat dissipation methods, such as heatsinking, are crucial in applications that involve high currents or frequent switching to prevent the MOSFET from overheating.

8. PCB Layout Design: In order to reduce resistance and inductance in the connections between the Drain, Source, and Gate, the PCB layout should be improved. The design should also accommodate the current handling and heat dissipation needs of the MOSFET.

In summary, the CSD18537NQ5A from the NexFET™ MOSFET series is suitable for various power conversion and management applications. Effective implementation includes accurate connections for the Drain, Source, and Gate, appropriate power supply arrangements, gate driving, inductive load protection, efficient thermal management, and a well-planned PCB layout to ensure optimal performance and reliability in power systems.

CSD18537NQ5A FAQ

1. How to order CSD18537NQ5A on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that CSD18537NQ5A is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the CSD18537NQ5A. All suppliers must pass our qualification reviews before they can publish their products including CSD18537NQ5A on icwhale.com; we pay more attention to the channels and quality of CSD18537NQ5A products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the CSD18537NQ5A price and inventory displayed accurate?

The price and inventory of CSD18537NQ5A fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of CSD18537NQ5A?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the CSD18537NQ5A we delivered, we will accept the replacement or return of the CSD18537NQ5A only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of CSD18537NQ5A.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
