What is the Additional Feature ?

Name: CSD18532Q5BT
Brand: Texas Instruments
SKU: CSD18532Q5BT
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments CSD18532Q5BT

Part No.:: CSD18532Q5BT

Manufacturer:: Texas Instruments

Package:: 8-VSONP (5x6)

Datasheet:: CSD18532Q5BT.pdf

Description:: MOSFET N-CH 60V 100A 8VSON

In Stock:: 3742

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CSD18532Q5BT Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
NexFET™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
100A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
3.2mOhm @ 25A, 10V
Vgs(th)(Max)@Id:
2.2V @ 250µA
GateCharge(Qg)(Max)@Vgs:
58 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
5070 pF @ 30 V
FETFeature:
-
PowerDissipation(Max):
3.2W (Ta), 156W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

CSD18532Q5BT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CSD18532Q5BT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CSD18532Q5BT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CSD18532Q5BT information

Views：

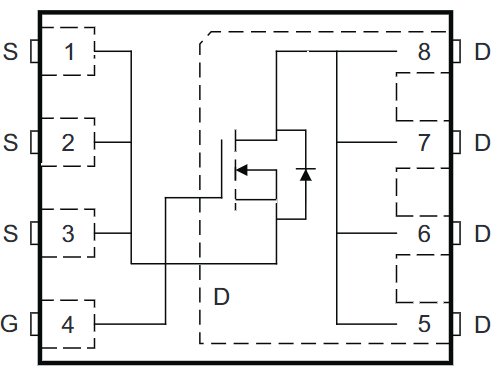

CSD18532Q5BT Typical application Circuitry

CSD18532Q5BT

The CSD18532Q5BT is a high-efficiency MOSFET from the NexFET™ series, specifically designed for power conversion applications that demand low on-resistance and high switching performance. This series is widely used in various power management solutions, such as DC-DC converters, motor drivers, and power supply units. The CSD18532Q5BT stands out for its capabilities in handling high currents and voltages efficiently, characterized by reduced power losses and improved thermal performance, making it a suitable choice for demanding power applications.

1. Drain Pin (D): The Drain pin of the CSD18532Q5BT is generally connected to the high-voltage side of the load in your circuit. For a high-side switch configuration, it connects to the positive terminal of the load, and in a low-side configuration, it's typically connected to the ground or the negative terminal.

2. Source Pin (S): The Source pin is another principal terminal of the MOSFET. In a high-side switch, it connects to the load's negative terminal, and in a low-side switch, it is usually linked to the circuit's ground or common reference.

3. Gate Pin (G): The Gate pin is vital for controlling the switching behavior of the MOSFET. This pin is connected to a gate driver or a microcontroller output, which provides the necessary voltage to turn the MOSFET on or off. The gate drive voltage should be chosen carefully to ensure proper operation within the CSD18532Q5BT's specifications.

4. Power Supply Connection: Ensure that the voltage applied across the Drain and Source terminals is within the CSD18532Q5BT's maximum voltage rating (V_DS) to prevent damage and ensure safe operation.

5. Gate Drive Circuit: A well-designed gate drive circuit is crucial for efficient MOSFET operation. The gate driver should be capable of delivering sufficient voltage and current to switch the MOSFET on and off rapidly.

6. Flyback Diode for Inductive Loads: If the CSD18532Q5BT is used in circuits with inductive loads, a flyback diode is recommended across the load. This diode protects the MOSFET from voltage spikes due to inductive kickback.

7. Thermal Management: Appropriate heat dissipation methods, such as heatsinks, are important due to the power handling nature of the CSD18532Q5BT, especially in high current or high-frequency switching applications.

8. PCB Layout Design: The PCB layout should minimize the resistance and inductance in the paths connecting the Drain, Source, and Gate terminals. The design should also accommodate the current and thermal requirements of the MOSFET for reliable operation.

In summary, the CSD18532Q5BT, part of the NexFET™ MOSFET series, is optimized for high-efficiency power conversion tasks. Implementing this component effectively involves proper connections for the Drain, Source, and Gate terminals, suitable power supply, gate drive circuitry, protection for inductive loads, and adequate thermal management. Additionally, a carefully designed PCB layout is crucial to support the MOSFET's performance and longevity in power-intensive applications.

CSD18532Q5BT FAQ

1. How to order CSD18532Q5BT on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that CSD18532Q5BT is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the CSD18532Q5BT. All suppliers must pass our qualification reviews before they can publish their products including CSD18532Q5BT on icwhale.com; we pay more attention to the channels and quality of CSD18532Q5BT products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the CSD18532Q5BT price and inventory displayed accurate?

The price and inventory of CSD18532Q5BT fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of CSD18532Q5BT?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the CSD18532Q5BT we delivered, we will accept the replacement or return of the CSD18532Q5BT only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of CSD18532Q5BT.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
