Texas Instruments CSD18532Q5B

Part No.:: CSD18532Q5B

Manufacturer:: Texas Instruments

Package:: 8-VSONP (5x6)

Datasheet:: CSD18532Q5B.pdf

Description:: MOSFET N-CH 60V 100A 8VSON

In Stock:: 7439

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CSD18532Q5B Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
NexFET™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
100A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
3.2mOhm @ 25A, 10V
Vgs(th)(Max)@Id:
2.2V @ 250µA
GateCharge(Qg)(Max)@Vgs:
58 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
5070 pF @ 30 V
FETFeature:
-
PowerDissipation(Max):
3.2W (Ta), 156W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

CSD18532Q5B this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CSD18532Q5B price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CSD18532Q5B to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CSD18532Q5B information

Views：

CSD18532Q5B Typical application Circuitry

CSD18532Q5B

The CSD18532Q5B is a prominent member of the NexFET™ power MOSFET series, renowned for its efficiency and performance in power conversion applications. This series is specifically designed to offer low on-resistance and high switching performance, making the CSD18532Q5B an excellent choice for high-efficiency power supplies, DC-DC converters, and other power management tasks. Its key features include a low threshold voltage, high current carrying capacity, and reduced power losses, which are essential in modern electronic power conversion systems.

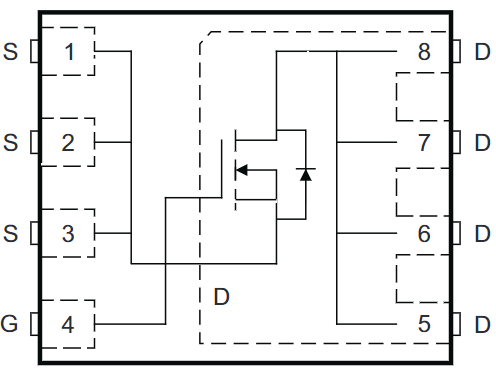

1. Drain Pin (D): The Drain pin of the CSD18532Q5B is typically connected to the higher voltage side of the load in a circuit. In a high-side switch configuration, it's connected to the positive side of the load, and in a low-side configuration, it can be connected to the circuit's ground.

2. Source Pin (S): The Source pin is another major terminal of the MOSFET. In high-side switching, it connects to the lower side of the load, and in low-side switching, it's usually connected to the ground or a common reference point.

3. Gate Pin (G): The Gate pin is crucial for controlling the MOSFET's operation. Connect this pin to the output of a gate driver circuit or a microcontroller. The voltage at this pin controls the on/off state of the MOSFET, so it must be managed carefully to ensure proper operation.

4. Power Supply Connections: The supply voltage should be connected considering the maximum voltage rating (V_DS) of the CSD18532Q5B. This guarantees that the MOSFET functions within its safe operating parameters.

5. Gate Drive Configuration: A suitable gate drive circuit is essential for the MOSFET's efficient operation. The gate driver should be capable of delivering the appropriate voltage and current to swiftly switch the MOSFET on and off.

6. Flyback Diode for Inductive Loads: If the CSD18532Q5B is used with inductive loads, a flyback diode across the load is recommended to safeguard the MOSFET from voltage spikes caused by inductive kickback.

7. Heat Management: Proper thermal management, such as using heatsinks, is crucial due to the power handling nature of the CSD18532Q5B, especially in applications involving high currents or high switching frequencies.

8. PCB Layout Considerations: Design the PCB to minimize resistance and inductance in the critical paths, particularly between the Drain, Source, and Gate terminals. The layout should also support the current handling and thermal dissipation requirements of the MOSFET.

In summary, the CSD18532Q5B, belonging to the NexFET™ MOSFET series, is a high-performance component ideal for efficient power conversion. Its implementation includes correct connections for the Drain, Source, and Gate, appropriate power supply arrangement, gate driving, protective measures for inductive loads, effective thermal management, and a well-designed PCB layout to ensure optimal performance and reliability in power-intensive applications.
