Texas Instruments CSD18504Q5A

Part No.:: CSD18504Q5A

Manufacturer:: Texas Instruments

Package:: 8-VSONP (5x6)

Datasheet:: CSD18504Q5A.pdf

Description:: MOSFET N-CH 40V 15A/50A 8VSON

In Stock:: 3464

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CSD18504Q5A Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
NexFET™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
40 V
Current-ContinuousDrain(Id)@25°C:
15A (Ta), 50A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
6.6mOhm @ 17A, 10V
Vgs(th)(Max)@Id:
2.4V @ 250µA
GateCharge(Qg)(Max)@Vgs:
19 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
1656 pF @ 20 V
FETFeature:
-
PowerDissipation(Max):
3.1W (Ta), 77W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

CSD18504Q5A this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CSD18504Q5A price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CSD18504Q5A to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CSD18504Q5A information

Views：

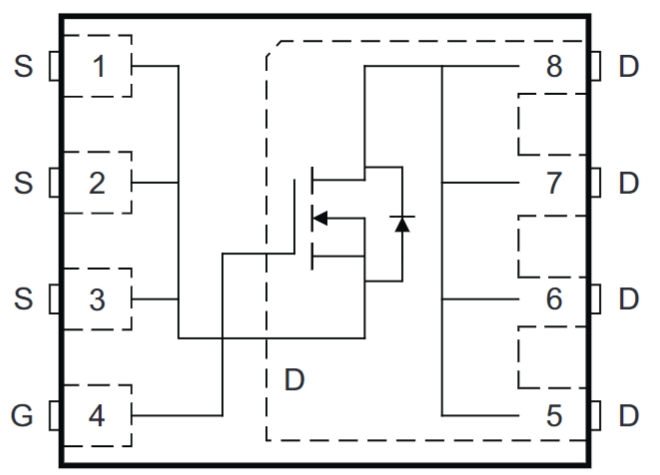

CSD18504Q5A Typical application Circuitry

CSD18504Q5A

The CSD18504Q5A is a high-performance N-Channel MOSFET designed by Texas Instruments, tailored for applications that demand high efficiency and power density. This device is renowned for its low on-resistance (R_DS(on)), high current handling capabilities, and fast switching performance, making it an excellent choice for power supply circuits, motor drives, and other power conversion applications.

Application Scenarios:

The CSD18504Q5A is particularly suitable for use in switch mode power supplies (SMPS), including both isolated and non-isolated DC-DC converters. Its efficiency and thermal performance are advantageous in applications like server power supplies, telecom rectifiers, and automotive power systems.

Characteristic Parameters:

- Low R_DS(on): Ensures minimal conduction losses, enhancing overall power conversion efficiency.

- High Current Capability: Supports high current throughput, which is critical for power-intensive applications.

- Fast Switching Speeds: Enables high-frequency operation, reducing the size of passive components and improving power density.

- Thermal Performance: Optimized for excellent heat dissipation, ensuring reliability under various operating conditions.

Circuit Connection for a Non-Isolated DC-DC Converter:

1. Power Input Connection: Join the CSD18504Q5A's drain to the input power source's positive terminal. This setup is essential for facilitating the flow of current through the device when it is in the ON state.

2. Load Connection: The source pin of the CSD18504Q5A should be connected to one end of the output inductor, with the other end of the inductor tied to the ground. This configuration forms the primary power path from the input to the load.

3. Gate Drive Circuit: Connect the gate of the CSD18504Q5A to a gate driver IC capable of providing the required gate charge and voltage to switch the MOSFET efficiently. The gate driver must be chosen to match the switching characteristics of the CSD18504Q5A for optimal performance.

4. Feedback and Control: Implement a feedback mechanism from the output to a PWM controller that drives the gate driver.This feedback loop is essential for controlling the output voltage since it modifies the CSD18504Q5A's duty cycle in response to changes in load demand.

Design Considerations:

- PCB Layout: Careful attention should be paid to the PCB layout, especially around the CSD18504Q5A and its gate drive circuit. Minimizing loop areas and optimizing trace widths for current handling and heat dissipation are crucial.

- Thermal Management: While the CSD18504Q5A is designed for efficient heat dissipation, additional thermal management strategies, such as heatsinks or thermal vias, may be necessary depending on the application's power level.

- Gate Drive Voltage: Ensure the gate driver provides an adequate voltage to fully turn on the CSD18504Q5A, minimizing R_DS(on) and maximizing efficiency.

- Protection Features: Incorporate over-current, over-voltage, and thermal protection circuits to safeguard the CSD18504Q5A and the overall system from adverse conditions.

Incorporating the CSD18504Q5A into a non-isolated DC-DC converter highlights its capacity to enhance system efficiency and power density. By meticulously considering aspects such as PCB layout, thermal management, and protection mechanisms, designers can fully exploit the capabilities of the CSD18504Q5A in advanced power conversion solutions.
