What is the Additional Feature ?

Name: CSD17308Q3T
Brand: Texas Instruments
SKU: CSD17308Q3T
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments CSD17308Q3T

Part No.:: CSD17308Q3T

Manufacturer:: Texas Instruments

Package:: 8-VSON-CLIP (3.3x3.3)

Datasheet:: CSD17308Q3T.pdf

Description:: MOSFET N-CH 30V 14A/44A 8VSON

In Stock:: 1873

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

CSD17308Q3T Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
NexFET™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
30 V
Current-ContinuousDrain(Id)@25°C:
14A (Ta), 44A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
3V, 8V
RdsOn(Max)@IdVgs:
10.3mOhm @ 10A, 8V
Vgs(th)(Max)@Id:
1.8V @ 250µA
GateCharge(Qg)(Max)@Vgs:
5.1 nC @ 4.5 V
Vgs(Max):
+10V, -8V
InputCapacitance(Ciss)(Max)@Vds:
700 pF @ 15 V
FETFeature:
-
PowerDissipation(Max):
2.7W (Ta), 28W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

CSD17308Q3T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including CSD17308Q3T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for CSD17308Q3T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

CSD17308Q3T information

Views：

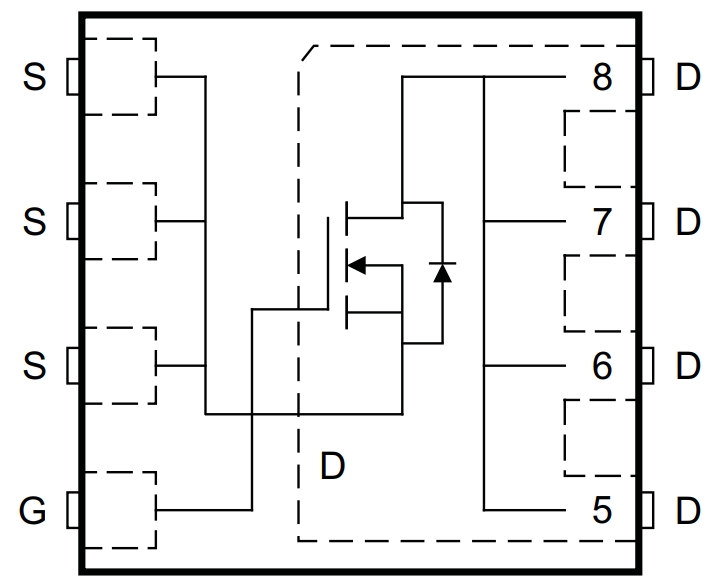

CSD17308Q3T Typical application Circuitry

CSD17308Q3T

The CSD17308Q3T is a highly efficient N-channel MOSFET, renowned for its low on-resistance and swift switching capabilities. It finds extensive applications in power management, notably in DC-DC converters, motor control, and power supplies.

Functional Highlights:

- Low RDS(on): Ensures minimal power dissipation and heightened efficiency in applications.

- Rapid Switching: Facilitates high-frequency operation, critical in switch-mode power supplies and motor control.

- Substantial Current Capacity: Suitable for handling high currents, making it ideal for power-intensive applications.

Application Insights:

1. Switch-Mode Power Supplies (SMPS): Integral in the power stages for efficient voltage regulation.

2. Motor Control Circuits: Utilized in H-bridges for precise motor speed and direction control.

3. Battery Management Systems: Employed in charging and protection circuits for optimal battery performance.

Specification Overview:

- Drain-Source Breakdown Voltage (VDS): Rated up to 30V, catering to a wide range of applications.

- Continuous Drain Current (ID): Capable of supporting up to 80A, suitable for high-power scenarios.

- Thermal Considerations: Designed with effective heat dissipation in mind for reliable operation under various conditions.

Circuit Design: Battery Charger Application

Designing a battery charger circuit with the CSD17308Q3T for efficient charging:

1. Power Source Connection: Link a DC power source to the circuit, ensuring it complies with the charger's voltage requirements.

2. MOSFET Integration: Deploy the CSD17308Q3T as the primary switching element. Connect its drain (D, Pin 1) to the positive terminal of the power source, and its source (S, Pin 2) to the charging circuit's input.

3. Control Circuitry: Attach a microcontroller or PWM controller to the gate (G, Pin 3) of the MOSFET to regulate its switching, thus controlling the charging current.

4. Feedback Loop: Incorporate a voltage and current sensing mechanism to provide feedback to the control circuitry, ensuring precise charge regulation.

Design Considerations:

- Voltage Compliance: Confirm that the input voltage is within the MOSFET's maximum VDS rating to prevent breakdown.

- Current Handling: Ascertain that the MOSFET can manage the peak charging current without surpassing its ID rating.

- Switching Control: Optimize the switching frequency to balance between efficiency and component sizing, while ensuring the CSD17308Q3T MOSFET's capability to handle the switching speed.

- Thermal Management: Implement suitable cooling strategies, like heat sinks, to maintain the MOSFET's temperature within operational limits.

In conclusion, the CSD17308Q3T N-channel MOSFET is a versatile component that excels in various power management applications due to its low on-resistance, fast switching, and high current handling capabilities. When designing circuits with this MOSFET, it's crucial to consider its voltage and current ratings, switching frequency, and thermal management to ensure efficient and reliable operation.
