Diodes Incorporated BSS84-7-F

Part No.:: BSS84-7-F

Manufacturer:: Diodes Incorporated

Package:: SOT-23-3

Datasheet:: BSS84-7-F.pdf

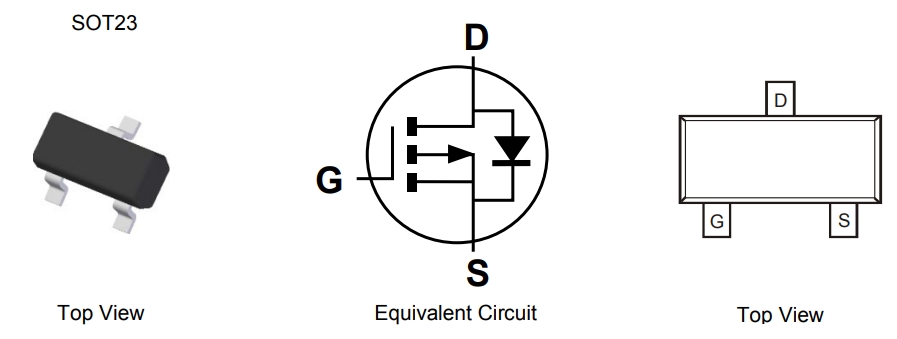

Description:: MOSFET P-CH 50V 130MA SOT23-3

In Stock:: 2492

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BSS84-7-F Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
50 V
Current-ContinuousDrain(Id)@25°C:
130mA (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
5V
RdsOn(Max)@IdVgs:
10Ohm @ 100mA, 5V
Vgs(th)(Max)@Id:
2V @ 1mA
GateCharge(Qg)(Max)@Vgs:
-
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
45 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
300mW (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount
