Infineon Technologies BSS308PEH6327XTSA1

Part No.:: BSS308PEH6327XTSA1

Manufacturer:: Infineon Technologies

Package:: PG-SOT23

Datasheet:: BSS308PEH6327XTSA1.pdf

Description:: MOSFET P-CH 30V 2A SOT23-3

In Stock:: 3206

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BSS308PEH6327XTSA1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
OptiMOS™
ProductStatus:
Active
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
30 V
Current-ContinuousDrain(Id)@25°C:
2A (Ta)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
80mOhm @ 2A, 10V
Vgs(th)(Max)@Id:
2V @ 11µA
GateCharge(Qg)(Max)@Vgs:
5 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
500 pF @ 15 V
FETFeature:
-
PowerDissipation(Max):
500mW (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

BSS308PEH6327XTSA1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including BSS308PEH6327XTSA1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for BSS308PEH6327XTSA1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

BSS308PEH6327XTSA1 information

Views：

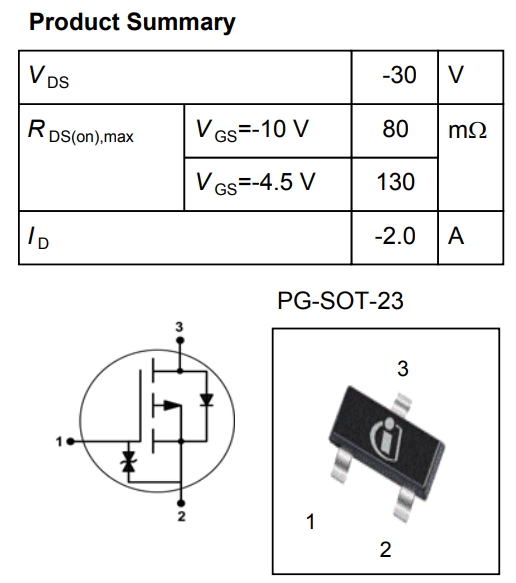

BSS308PEH6327XTSA1 Typical application Circuitry

BSS308PEH6327XTSA1

The BSS308PEH6327XTSA1 is a P-channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor), designed for efficient power management and control in electronic circuits. The "PEH6327XTSA1" designation indicates a specific model within the BSS308 series, possibly referring to its packaging or particular electrical characteristics. P-channel MOSFETs like the BSS308PEH6327XTSA1 are typically used for their ability to efficiently switch and manage power in a high-side configuration.

Functional Role

P-Channel MOSFET: The BSS308PEH6327XTSA1 functions as a P-channel MOSFET, ideal for high-side switching applications where efficient control of electrical current is needed.

Application Scenarios

In Power Distribution Systems: Commonly used in power distribution systems of portable devices for efficient power management.

For Load Switching Applications: Suitable for load-switching applications in consumer electronics, such as controlling LEDs or small motors.

Key Parameters

Effective Power Handling: The BSS308PEH6327XTSA1 features low on-resistance, ensuring efficient power handling and minimal energy loss.

High-Speed Switching Performance: Designed for quick switching, making it appropriate for dynamic power management tasks.

Circuit Example: High-Side Load Switching

Objective: Designing a high-side load-switching circuit using the BSS308PEH6327XTSA1.

Detailed Circuit Implementation

1. Power Source Setup: Begin with a suitable DC power source, like a 5V battery, appropriate for the circuit's requirements.

2. MOSFET Deployment: Connect the source pin (Pin 1) of the BSS308PEH6327XTSA1 to the positive terminal of the power source.

3. Load Configuration: Attach the drain pin (Pin 2) to the load, such as an LED or a small motor.

4. Control Signal Connection: Interface a control signal (from a microcontroller) to the gate pin (Pin 3) to manage the load's power.

5. Grounding and Protection Measures: Ensure the load's other terminal is connected to the ground and include necessary protection, like a current-limiting resistor.

Design Considerations

When incorporating the BSS308PEH6327XTSA1, focus on these factors:

1. Gate Voltage Optimization: The gate voltage should be suitable for the MOSFET's operation without causing stress.

2. Thermal Management: Implement heat dissipation strategies, especially if the MOSFET handles substantial current.

3. Signal Clarity: Maintain the precision of the control signal for accurate operation of the load switching.

4. Voltage Rating Compatibility: Confirm that the MOSFET's voltage ratings align with the power source and the load.

5. Circuit Protection: Incorporate elements like overcurrent protection for the safety of the MOSFET and connected components.

6. Parasitic Capacitance Control: Design the layout to minimize parasitic effects, crucial for maintaining high-speed performance.

7. Stable Power Supply Use: Utilize a regulated power source to prevent voltage fluctuations impacting the MOSFET's functionality.

8. Environmental Condition Adaptation: Consider operating conditions such as temperature and humidity, which might affect the MOSFET's performance.

In summary, the BSS308PEH6327XTSA1 P-channel MOSFET is an efficient component, particularly effective for high-side load-switching applications in power management systems. Its low on-resistance and quick switching capabilities make it a valuable choice for modern electronic designs. Key considerations for circuit integration include gate voltage accuracy, thermal management, signal integrity, and protective measures, ensuring optimal performance and reliability.
