Infineon Technologies BSP322PH6327XTSA1

Part No.:: BSP322PH6327XTSA1

Manufacturer:: Infineon Technologies

Package:: PG-SOT223-4

Datasheet:: BSP322PH6327XTSA1.pdf

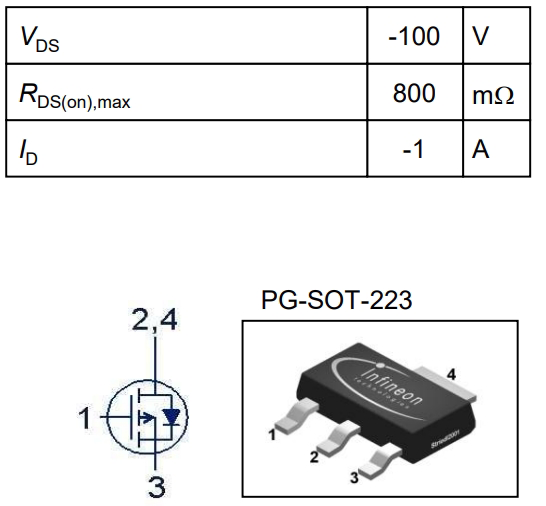

Description:: MOSFET P-CH 100V 1A SOT223-4

In Stock:: 3916

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BSP322PH6327XTSA1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
SIPMOS®
ProductStatus:
Active
FETType:
P-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
100 V
Current-ContinuousDrain(Id)@25°C:
1A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
800mOhm @ 1A, 10V
Vgs(th)(Max)@Id:
1V @ 380µA
GateCharge(Qg)(Max)@Vgs:
16.5 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
372 pF @ 25 V
FETFeature:
-
PowerDissipation(Max):
1.8W (Ta)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount
