What is the Additional Feature ?

Name: BSC160N15NS5ATMA1
Brand: Infineon Technologies
SKU: BSC160N15NS5ATMA1
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

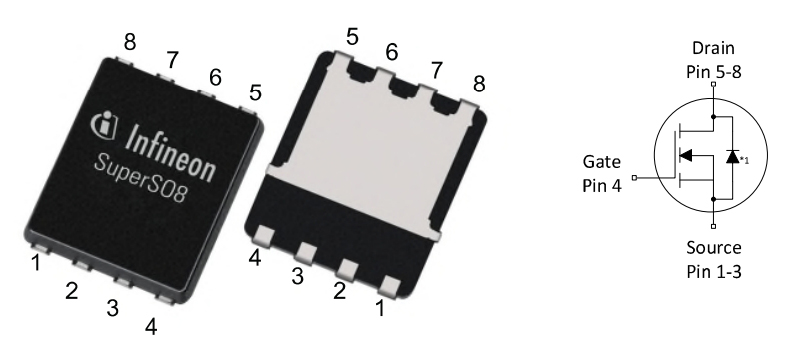

lmages are for reference only See Product Specifications

Infineon Technologies BSC160N15NS5ATMA1

Part No.:: BSC160N15NS5ATMA1

Manufacturer:: Infineon Technologies

Package:: PG-TDSON-8-7

Datasheet:: BSC160N15NS5ATMA1.pdf

Description:: MOSFET N-CH 150V 56A TDSON

In Stock:: 3855

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BSC160N15NS5ATMA1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
OptiMOS™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
150 V
Current-ContinuousDrain(Id)@25°C:
56A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
8V, 10V
RdsOn(Max)@IdVgs:
16mOhm @ 28A, 10V
Vgs(th)(Max)@Id:
4.6V @ 60µA
GateCharge(Qg)(Max)@Vgs:
23.1 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
1820 pF @ 75 V
FETFeature:
-
PowerDissipation(Max):
96W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

BSC160N15NS5ATMA1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including BSC160N15NS5ATMA1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for BSC160N15NS5ATMA1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

BSC160N15NS5ATMA1 information

Views：

BSC160N15NS5ATMA1 Typical application Circuitry

BSC160N15NS5ATMA1

BSC160N15NS5ATMA1 is a high-performance Field-Effect Transistor (FET) designed to meet the demands of high efficiency and high-density power conversion applications. This device utilizes advanced semiconductor technology to achieve low on-resistance and high switching speed, making it highly useful in a variety of electronic devices and power conversion systems.

Application Scenarios

BSC160N15NS5ATMA1 plays a crucial role in many application scenarios, including, but not limited to:

- Switching Power Supplies: Used for providing stable power conversion.

- DC-DC Converters: Converts power between different voltage levels for portable devices and electronic systems.

- Electric vehicle (EV) power management: regulates the charging and discharging of EV batteries.

- Sun Inverters: These gadgets convert solar panels' direct current (DC) into alternating current (AC).

Parameter Features

Key parameter features of BSC160N15NS5ATMA1 include:

- Low On-Resistance (Rds(on)): Ensures efficient power conversion, reducing power loss.

- High Switching Speed: Lowers energy loss during switching and increases power conversion efficiency.

- High Voltage Tolerance (Vds): Can withstand high voltages, offering greater design flexibility.

Considerations in Circuit Design

When designing circuits that include BSC160N15NS5ATMA1, several key issues must be considered:

- Thermal Management: Power conversion can lead to device heating, so a good heat dissipation design is necessary to keep the device temperature within safe limits.

- Drive Capability: Ensure the drive circuit can provide sufficient current to drive BSC160N15NS5ATMA1 for efficient switching.

- Voltage Levels: Select appropriate voltage levels to match application requirements and avoid device damage due to overvoltage.

- Protection Measures: Implement overvoltage, overcurrent, and other protection measures to prevent device damage under abnormal conditions.

Specific Application Scenario: Design of a DC-DC Converter

In designing a DC-DC converter based on BSC160N15NS5ATMA1, we can detail the following key steps:

1.Choose the Appropriate Topology: Select a suitable converter topology based on the required input and output voltages, such as Buck (step-down) or Boost (step-up).

2.Determine the Configuration of BSC160N15NS5ATMA1: In a Buck converter design, BSC160N15NS5ATMA1 can act as the main switch controlling the direction of the current flow. Ensure the Source of BSC160N15NS5ATMA1 is connected to the negative terminal of the power source, the Drain is connected to one side of the load, and the Gate receives PWM signals through the drive circuit to control the switch.

3.Design an Appropriate Drive Circuit: Use a dedicated driver IC to drive the Gate of BSC160N15NS5ATMA1, ensuring rapid and effective switching actions. For effective switching, the drive circuit must supply sufficient current to charge and discharge the BSC160N15NS5ATMA1 gate capacitance.

4.Implement Proper Heat Dissipation Measures: Based on the power loss and operating environment of BSC160N15NS5ATMA1, design a suitable cooling system, which may include heat sinks, fans, or other cooling methods.

5.Incorporate Protection Circuits: Design overvoltage and overcurrent protection circuits to protect BSC160N15NS5ATMA1 from damage under abnormal operating conditions.

Through these steps, a high-efficiency, reliable DC-DC converter design can be achieved, fully utilizing the performance advantages of BSC160N15NS5ATMA1. Each decision in the design process should consider the device's parameter features to ensure circuit stability and efficiency.
