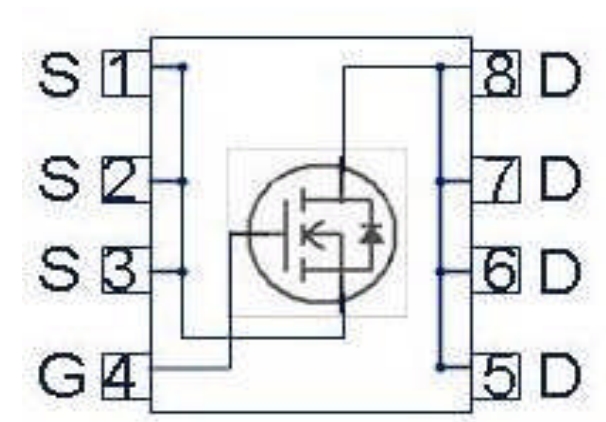

Infineon Technologies BSC123N08NS3GATMA1

Part No.:: BSC123N08NS3GATMA1

Manufacturer:: Infineon Technologies

Package:: PG-TDSON-8-1

Datasheet:: BSC123N08NS3GATMA1.pdf

Description:: MOSFET N-CH 80V 11A/55A TDSON

In Stock:: 2713

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BSC123N08NS3GATMA1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
OptiMOS™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
80 V
Current-ContinuousDrain(Id)@25°C:
11A (Ta), 55A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
6V, 10V
RdsOn(Max)@IdVgs:
12.3mOhm @ 33A, 10V
Vgs(th)(Max)@Id:
3.5V @ 33µA
GateCharge(Qg)(Max)@Vgs:
25 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
1870 pF @ 40 V
FETFeature:
-
PowerDissipation(Max):
2.5W (Ta), 66W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount
