Infineon Technologies BSC093N15NS5ATMA1

Part No.:: BSC093N15NS5ATMA1

Manufacturer:: Infineon Technologies

Package:: PG-TDSON-8-7

Datasheet:: BSC093N15NS5ATMA1.pdf

Description:: MOSFET N-CH 150V 87A TDSON

In Stock:: 2380

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BSC093N15NS5ATMA1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
OptiMOS™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
150 V
Current-ContinuousDrain(Id)@25°C:
87A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
8V, 10V
RdsOn(Max)@IdVgs:
9.3mOhm @ 44A, 10V
Vgs(th)(Max)@Id:
4.6V @ 107µA
GateCharge(Qg)(Max)@Vgs:
40.7 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
3230 pF @ 75 V
FETFeature:
-
PowerDissipation(Max):
139W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

BSC093N15NS5ATMA1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including BSC093N15NS5ATMA1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for BSC093N15NS5ATMA1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

BSC093N15NS5ATMA1 information

Views：

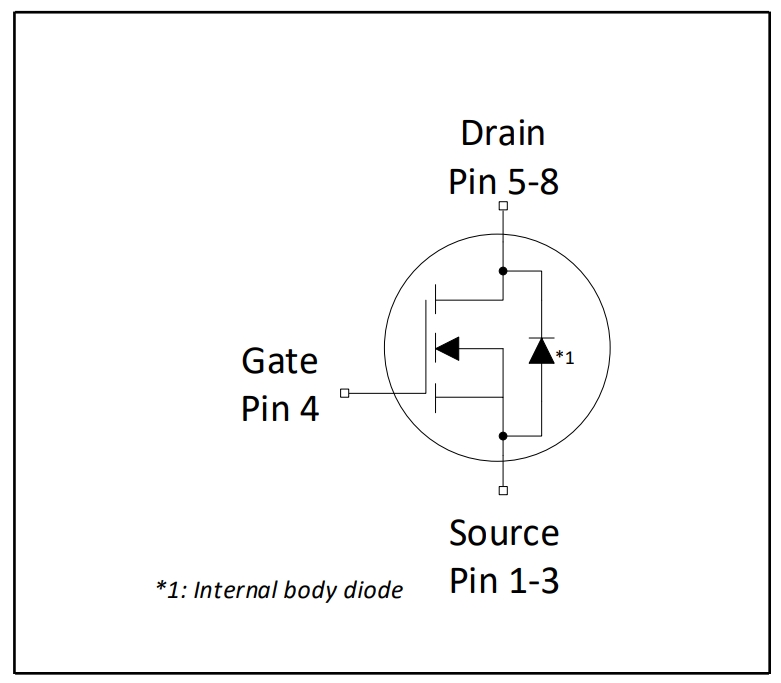

BSC093N15NS5ATMA1 Typical application Circuitry

BSC093N15NS5ATMA1

N-channel MOSFETs, a kind of effective and adaptable semiconductor utilized for amplifying and switching electrical signals, include the BSC093N15NS5ATMA1. Here is a thorough examination of its features, potential uses, key specifications, an elaborate circuit example, and design considerations:

1. Primary Functionality: The BSC093N15NS5ATMA1 specializes in controlling electrical power flow, particularly in high-power applications, acting as an efficient switch.

2. Application Scenarios: It is ideal for use in power conversion systems, like in DC-DC converters, as well as in power management modules for automotive and industrial equipment.

3. Key Parameter Characteristics: The BSC093N15NS5ATMA1 stands out for its low on-resistance, high current capacity, and ability to operate efficiently at high voltages and frequencies, making it well-suited for demanding power applications.

4. Circuit Implementation in a DC-DC Converter:

- Circuit Function: In a DC-DC converter, the BSC093N15NS5ATMA1 serves as the primary switching element.

- Pin Connectivity: Connect the drain (Pin 2) to the input power source, the source (Pin 3) to the common ground, and the gate (Pin 1) to the PWM control circuit.

- PWM Control Connection: A PWM controller is used for controlling the gate voltage, thus regulating the on-off state of the MOSFET.

- Inductor and Capacitor Setup: Include an inductor connected to the drain and a capacitor between the output of the inductor and ground to stabilize the output voltage.

- Feedback Loop Integration: A feedback loop from the output to the PWM controller is essential for output voltage stabilization.

5. Design Considerations:

- Gate Voltage Regulation: The gate voltage should be precisely controlled within the specified range.

- Thermal Management Strategy: Adequate heat dissipation is crucial, possibly requiring a heat sink.

- Frequency Adjustment: The switching frequency should be optimized for efficiency and to minimize losses.

- Protective Measures: Implement protection against overcurrent, overvoltage, and thermal overload.

Designing with the BSC093N15NS5ATMA1 requires careful attention to the specific needs of the application and adherence to the component's specifications as detailed in the datasheet. Tailoring the design to suit the particular requirements of the system while ensuring the MOSFET operates within its safe operating area is key to successful implementation.
