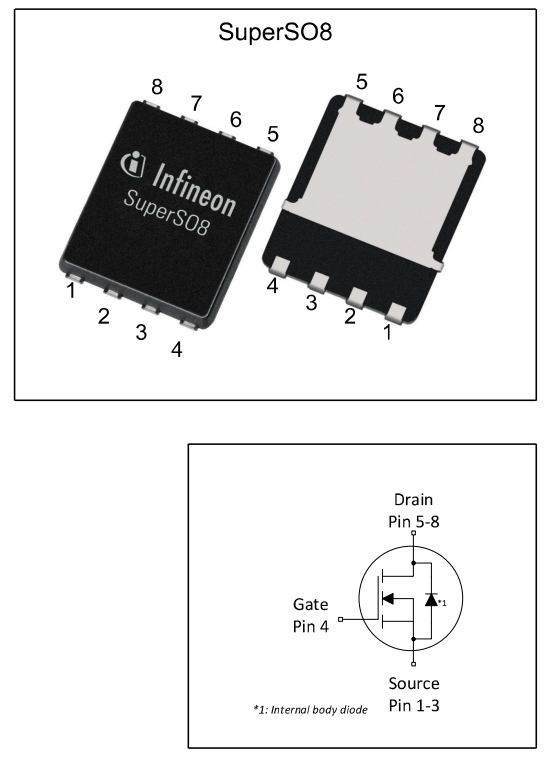

Infineon Technologies BSC0702LSATMA1

Part No.:: BSC0702LSATMA1

Manufacturer:: Infineon Technologies

Package:: PG-TDSON-8

Datasheet:: BSC0702LSATMA1.pdf

Description:: MOSFET N-CH 60V 100A SUPERSO8

In Stock:: 2374

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BSC0702LSATMA1 Specifications

Packaging:
Cut Tape (CT),Digi-Reel®
Series:
OptiMOS™
ProductStatus:
Not For New Designs
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
100A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
2.3mOhm @ 50A, 10V
Vgs(th)(Max)@Id:
2.3V @ 49µA
GateCharge(Qg)(Max)@Vgs:
30 nC @ 4.5 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
4400 pF @ 30 V
FETFeature:
Standard
PowerDissipation(Max):
83W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount
