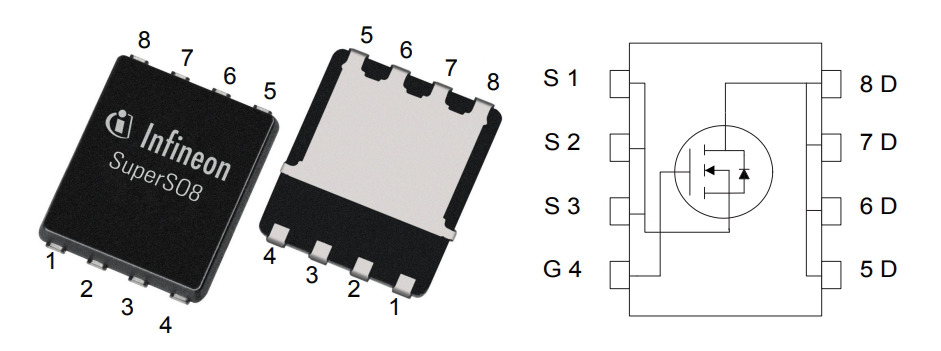

Infineon Technologies BSC040N10NS5ATMA1

Part No.:: BSC040N10NS5ATMA1

Manufacturer:: Infineon Technologies

Package:: PG-TDSON-8-7

Datasheet:: BSC040N10NS5ATMA1.pdf

Description:: MOSFET N-CH 100V 100A TDSON

In Stock:: 2696

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BSC040N10NS5ATMA1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
OptiMOS™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
100 V
Current-ContinuousDrain(Id)@25°C:
100A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
6V, 10V
RdsOn(Max)@IdVgs:
4mOhm @ 50A, 10V
Vgs(th)(Max)@Id:
3.8V @ 95µA
GateCharge(Qg)(Max)@Vgs:
72 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
5300 pF @ 50 V
FETFeature:
-
PowerDissipation(Max):
2.5W (Ta), 139W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

BSC040N10NS5ATMA1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including BSC040N10NS5ATMA1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for BSC040N10NS5ATMA1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

BSC040N10NS5ATMA1 information

Views：

BSC040N10NS5ATMA1 Typical application Circuitry

BSC040N10NS5ATMA1

BSC040N10NS5ATMA1 represents a cutting-edge power MOSFET designed primarily for high-efficiency power conversion and management applications.

Application Scenarios

BSC040N10NS5ATMA1 finds its utility in diverse scenarios, prominently including:

- Motor Control Systems: For precise speed and direction control of motors in automotive and industrial applications.

- Power Supply Units (PSUs): In desktops, servers, and telecom infrastructure to convert electrical power efficiently.

- Battery Management Systems: For electric vehicles and portable electronics, ensuring optimal battery performance and longevity.

- Renewable Energy Systems: Specifically in solar inverters and wind turbines to maximize energy conversion efficiency.

Parameter Features

The BSC040N10NS5ATMA1 is characterized by: - Low On-Resistance (Rds(on)): Minimizes power losses and improves efficiency.

- High Switching Speed: Facilitates faster switching operations, enhancing overall power conversion efficiency.

- Enhanced Thermal Performance: Made to function dependably in situations with high power and temperature.

Design Considerations

When incorporating BSC040N10NS5ATMA1 into circuit designs, several critical considerations must be addressed:

- Thermal Management: Effective heat dissipation solutions are essential to maintain device performance and prevent thermal runaway.

- Gate Drive Considerations: The gate driver must be capable of delivering adequate charge to fully turn on the MOSFET at the required speed.

- Circuit protective: The MOSFET and the circuit are protected by putting in place the proper protective mechanisms, such as under-voltage, over-current, and over-current protection.

- PCB Layout: Optimizing the PCB layout to minimize loop areas and parasitic inductances is crucial for achieving high switching performance.

Specific Application Scenario: Battery Management System Design

In designing a Battery Management System (BMS) using BSC040N10NS5ATMA1, meticulous attention to the following details is paramount:

1.Selection of Configuration: Opting for BSC040N10NS5ATMA1 as a switch in the charging and discharging path due to its high efficiency and reliability.

2.Integration with Control Circuitry: A microcontroller or a battery management controller is interfaced with the BSC040N10NS5ATMA1. The Gate of the BSC040N10NS5ATMA1 is connected to a gate driver, which is then controlled by the microcontroller to regulate the charging and discharging processes.

3.Heat Dissipation Measures: Given the potential for high power dissipation during operation, implementing adequate cooling solutions, such as heatsinks or thermal pads, directly on BSC040N10NS5ATMA1 is essential.

4.Protection Schemes: Designing the circuit with built-in protections like over-current detection, which directly interfaces with BSC040N10NS5ATMA1 to quickly shut down the path in case of current overload, is crucial for battery safety.

5.PCB Design Considerations: Ensuring the PCB layout is optimized to minimize the resistance and inductance in the current path to and from the BSC040N10NS5ATMA1. This involves placing the BSC040N10NS5ATMA1 close to the battery connection points and using wide traces or copper planes for connections.

By thoroughly addressing these design aspects, a highly efficient and reliable BMS can be developed using BSC040N10NS5ATMA1, significantly enhancing the performance and lifespan of battery systems in various applications.
