Infineon Technologies BSC016N06NSTATMA1

Part No.:: BSC016N06NSTATMA1

Manufacturer:: Infineon Technologies

Package:: PG-TDSON-8 FL

Datasheet:: BSC016N06NSTATMA1.pdf

Description:: MOSFET N-CH 60V 31A/100A TDSON

In Stock:: 2230

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BSC016N06NSTATMA1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
OptiMOS™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
31A (Ta), 100A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
6V, 10V
RdsOn(Max)@IdVgs:
1.6mOhm @ 50A, 10V
Vgs(th)(Max)@Id:
3.3V @ 95µA
GateCharge(Qg)(Max)@Vgs:
95 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
6500 pF @ 30 V
FETFeature:
-
PowerDissipation(Max):
3W (Ta), 167W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

BSC016N06NSTATMA1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including BSC016N06NSTATMA1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for BSC016N06NSTATMA1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

BSC016N06NSTATMA1 information

Views：

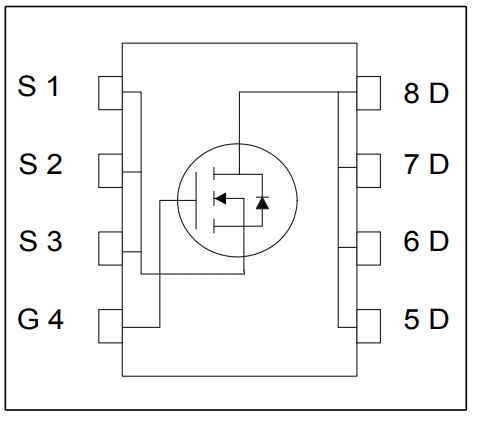

BSC016N06NSTATMA1 Typical application Circuitry

BSC016N06NSTATMA1

The BSC016N06NSTATMA1 is a high-performance N-channel MOSFET developed by Infineon Technologies. It is designed primarily for power conversion and efficient switching applications, characterized by its ability to handle high currents, low on-resistance, and rapid switching.

BSC016N06NSTATMA1: Functionalities and Application Context

Specialized Applications

- Inverter Systems for Renewable Energy: Used in solar inverters for efficient power conversion.

- Automotive Power Management: Key component in the power control units of electric vehicles (EVs).

- Industrial Motor Drives: Utilized in controlling industrial motors for energy-efficient operations.

Key Specifications

- Low Rds(on): Minimizes power loss, enhancing overall system efficiency.

- High Current Capability: Suitable for handling high power levels required in industrial and automotive applications.

- Fast Switching Attributes: Critical for applications demanding quick response times.

- Robust Design: Engineered to withstand harsh operating conditions.

Circuit Integration: BSC016N06NSTATMA1 in a Solar Inverter System

1. Effective MOSFET Integration

- Gate (Pin 1): Connects to the PWM output of the solar inverter controller for operational control.

- Drain (Pin 2): Links to the higher potential side of the DC input from solar panels.

2. Source Pin Arrangement and Grounding

- Source (Pin 3): Tied to the system ground, establishing a reference point for MOSFET operation.

3. Detailed Gate Drive and Protective Scheme

- Gate Drive Configuration: Implement a gate driver circuit providing the necessary voltage and current.

- Protection Elements: Include a resistor for inrush current limitation and a diode to protect against voltage spikes.

Advanced Design Considerations

- Efficient Thermal Management: Implement cooling solutions for heat generated by the MOSFET during high-power operation.

- Precision in Gate Driving: The gate driver circuit must be accurately designed to ensure timely and efficient MOSFET operation.

- Optimized PCB Layout for Efficiency: Arrange the PCB to effectively handle high current paths and reduce parasitic inductances.

- Switching Frequency Optimization: Adjust the frequency to balance between efficiency and thermal management.

- Load Compatibility Assessment: Analyze the characteristics of the solar inverter's load for stable operation.

- Comprehensive Protection Strategy: Implement overcurrent, overvoltage, and thermal protection features.

- EMI Mitigation Techniques: Design the circuit to minimize electromagnetic interference.

- Standards and Regulations Compliance: Ensure the design adheres to relevant electrical and safety standards in renewable energy applications.

Incorporating the BSC016N06NSTATMA1 into a solar inverter system demands a thorough understanding of these design principles for optimal performance, reliability, and safety. Detailed specifications and application guides can be found in the BSC016N06NSTATMA1's datasheet and Infineon's technical resources.
