Infineon Technologies BSC014N06NSATMA1

Part No.:: BSC014N06NSATMA1

Manufacturer:: Infineon Technologies

Package:: PG-TDSON-8-17

Datasheet:: BSC014N06NSATMA1.pdf

Description:: MOSFET N-CH 60V 30A/100A TDSON7

In Stock:: 2307

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BSC014N06NSATMA1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
OptiMOS™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
60 V
Current-ContinuousDrain(Id)@25°C:
30A (Ta), 100A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
6V, 10V
RdsOn(Max)@IdVgs:
1.45mOhm @ 50A, 10V
Vgs(th)(Max)@Id:
2.8V @ 120µA
GateCharge(Qg)(Max)@Vgs:
89 nC @ 10 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
6500 pF @ 30 V
FETFeature:
-
PowerDissipation(Max):
2.5W (Ta), 156W (Tc)
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

BSC014N06NSATMA1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including BSC014N06NSATMA1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for BSC014N06NSATMA1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

BSC014N06NSATMA1 information

Views：

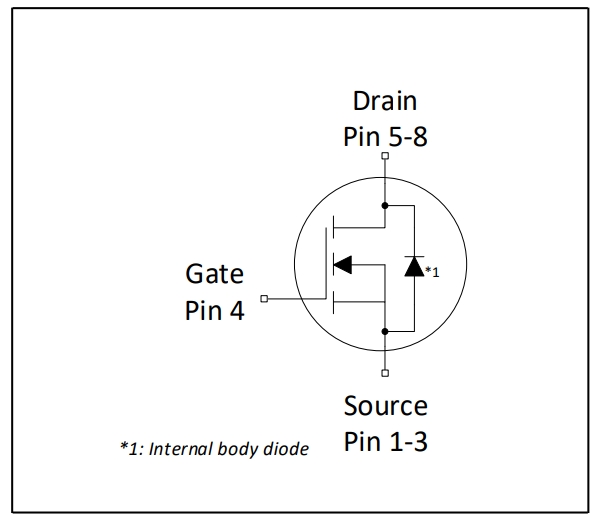

BSC014N06NSATMA1 Typical application Circuitry

BSC014N06NSATMA1

The BSC014N06NSATMA1 is a N-channel power MOSFET developed by Infineon Technologies, specifically designed for high-efficiency power conversion and switching applications. This MOSFET is known for its high current capability, low on-resistance, and fast switching speed, making it suitable for a variety of power management applications.

BSC014N06NSATMA1: Core Functions and Use Cases

Dedicated Applications

- Switching Power Supplies: Commonly used in desktop and server power supplies for efficient power regulation.

- Automotive Electronics: Utilized in the power control units of electric and hybrid vehicles.

- Renewable Energy Inverters: Essential in solar power inverters for effective energy conversion.

Principal Specifications

- Low Rds(on): Ensures minimal power loss and enhances efficiency.

- High Current Handling: Ideal for handling significant currents in power-intensive applications.

- Rapid Switching Performance: Beneficial for applications requiring quick electrical response.

- Robust Physical Design: Suitable for demanding environments with space constraints.

Circuit Implementation: BSC014N06NSATMA1 in a Switching Power Supply

1. MOSFET Integration into the Circuit

- Gate (Pin 1): Connect to a PWM controller for switching control.

- Drain (Pin 2): Attach to the high-side load or the input voltage line.

2. Source Pin Arrangement and Grounding

- Source (Pin 3): Connect to the system's ground for a stable operation baseline.

3. Detailed Gate Drive and Protection Layout

- Gate Drive Design: A well-designed gate driver is essential to provide the necessary control voltage.

- Protective Components: Include a gate resistor for managing inrush current and a diode for voltage spike protection.

Sophisticated Design Considerations

- Advanced Thermal Management: Plan for effective heat dissipation, given the MOSFET's power handling characteristics.

- Precise Gate Drive Mechanism: The gate driver should be finely calibrated for efficient and timely MOSFET operation.

- Efficient PCB Layout: Design the PCB to accommodate high current paths and minimize parasitic losses.

- Optimum Switching Frequency: Balance the switching frequency to maximize efficiency and reduce heat generation.

- Load Compatibility Check: Assess the nature of the power supply load to ensure stability and reliability.

- Robust Protective Features: Implement circuits for overcurrent, overvoltage, and thermal protection.

- EMI Considerations: Design to minimize electromagnetic interference, crucial in power supply applications.

- Compliance with Standards: Ensure the design meets relevant electrical and safety standards, especially in power supply systems.

Incorporating the BSC014N06NSATMA1 into a switching power supply demands careful attention to these design principles for optimal performance and safety. For detailed specifications, pin configuration, and application guidance, the BSC014N06NSATMA1's datasheet and Infineon's technical resources should be consulted.
