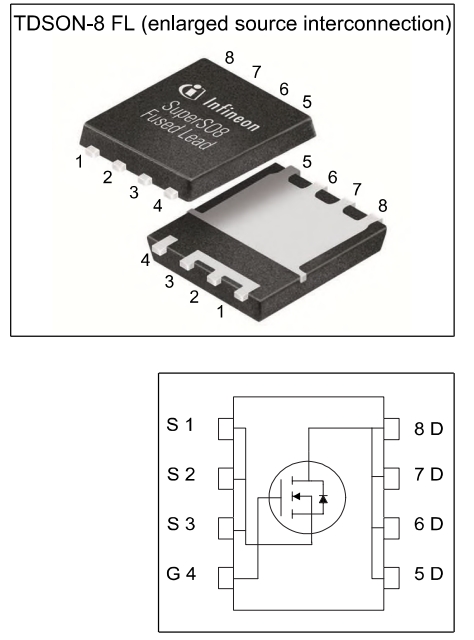

Infineon Technologies BSC011N03LSTATMA1

Part No.:: BSC011N03LSTATMA1

Manufacturer:: Infineon Technologies

Package:: PG-TDSON-8 FL

Datasheet:: BSC011N03LSTATMA1.pdf

Description:: MOSFET N-CH 30V 39A/100A TDSON

In Stock:: 2109

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

BSC011N03LSTATMA1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
OptiMOS™
ProductStatus:
Active
FETType:
N-Channel
Technology:
MOSFET (Metal Oxide)
DraintoSourceVoltage(Vdss):
30 V
Current-ContinuousDrain(Id)@25°C:
39A (Ta), 100A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
4.5V, 10V
RdsOn(Max)@IdVgs:
1.1mOhm @ 30A, 10V
Vgs(th)(Max)@Id:
2V @ 250µA
GateCharge(Qg)(Max)@Vgs:
48 nC @ 4.5 V
Vgs(Max):
±20V
InputCapacitance(Ciss)(Max)@Vds:
6300 pF @ 15 V
FETFeature:
-
PowerDissipation(Max):
3W (Ta), 115W (Tc)
OperatingTemperature:
-55°C ~ 175°C (TJ)
MountingType:
Surface Mount

BSC011N03LSTATMA1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including BSC011N03LSTATMA1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for BSC011N03LSTATMA1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

BSC011N03LSTATMA1 information

Views：

BSC011N03LSTATMA1 Typical application Circuitry

BSC011N03LSTATMA1

The BSC011N03LSTATMA1 is an advanced N-channel MOSFET, engineered for high-efficiency power switching and management tasks. Its low on-resistance and substantial current-handling capabilities make it a top choice for a range of applications, from power conversion to motor control.

Key Use Cases:

1. Battery Management Systems: The BSC011N03LSTATMA1 is ideal for managing power in battery-operated devices, ensuring efficient charging and discharging.

2. Motor Drives: It is commonly used in motor drive circuits for electric vehicles and industrial machines, providing precise control and energy efficiency.

3. Power Supply Regulation: The BSC011N03LSTATMA1 MOSFET is employed in power supply circuits for stable voltage regulation, crucial in electronic devices and systems.

Notable Parameters:

- Drain-Source Voltage (Vds): It can withstand up to 30V, offering versatility in various operating conditions.

- Gate-Source Voltage (Vgs): Rated for up to ±20V, compatible with a wide range of control signals.

- Continuous Drain Current (Id): Capable of handling up to 37A, suitable for high-current applications.

- On-Resistance (Rds(on)): As low as 11mΩ at Vgs = 10V, ensuring efficient conduction and minimal power loss.

Example Circuit - Solar-Powered LED Lighting:

1. Solar Panel Connection: Attach the positive terminal of a solar panel to the drain (D) pin of the BSC011N03LSTATMA1.

2. LED Configuration: Connect an LED in series with a current-limiting resistor to the source (S) pin, with the other end grounded.

3. Light Control Signal: Apply a control signal from a light sensor or microcontroller to the gate (G) pin to regulate the LED based on ambient light levels.

4. Grounding: Ensure that the ground of the solar panel, the light sensor, and the source (S) pin of the MOSFET are all connected for a stable reference.

Design Considerations:

- Gate Voltage Matching: It's crucial to provide a gate voltage that's adequate to fully turn on the MOSFET while staying within its gate-source voltage limits.

- Thermal Management: Implement effective heat dissipation strategies, such as using a heatsink, especially when the MOSFET is operating under high-current conditions.

- Circuit Protection: Introduce protective elements like a gate resistor to limit gate current and a flyback diode to guard against voltage spikes in inductive loads.

In summary, the BSC011N03LSTATMA1 MOSFET is a vital component in modern electronic designs, offering a balance of low on-resistance and high current handling capability. When designing circuits with this MOSFET, it's vital to focus on gate voltage accuracy, effective thermal management, and incorporating protective measures to ensure reliable and efficient operation.
